RFID Barcode 2D QR Code Reader Wiegand USB RS232 TTL RS485 Access Control Reader

RFID Barcode 2D QR Code Reader Wiegand USB RS232 TTL RS485 Access Control Reader

  • Product SKU: 14:10#125Khz
Availablility: Available to Order
£85.90 £101.00
Color
125Khz
13.56Mhz
Wishlist Compare

SPECIFICATIONS

Brand Name: LIHTNE

Certification: CE

High-concerned chemical: none

Model Number: R35C/D

Origin: Mainland China

Package Size: 12cm x 12cm x 4cm (4.72in x 4.72in x 1.57in)

Package Weight: 0.2kg (0.44lb.)

Unit Type: piece

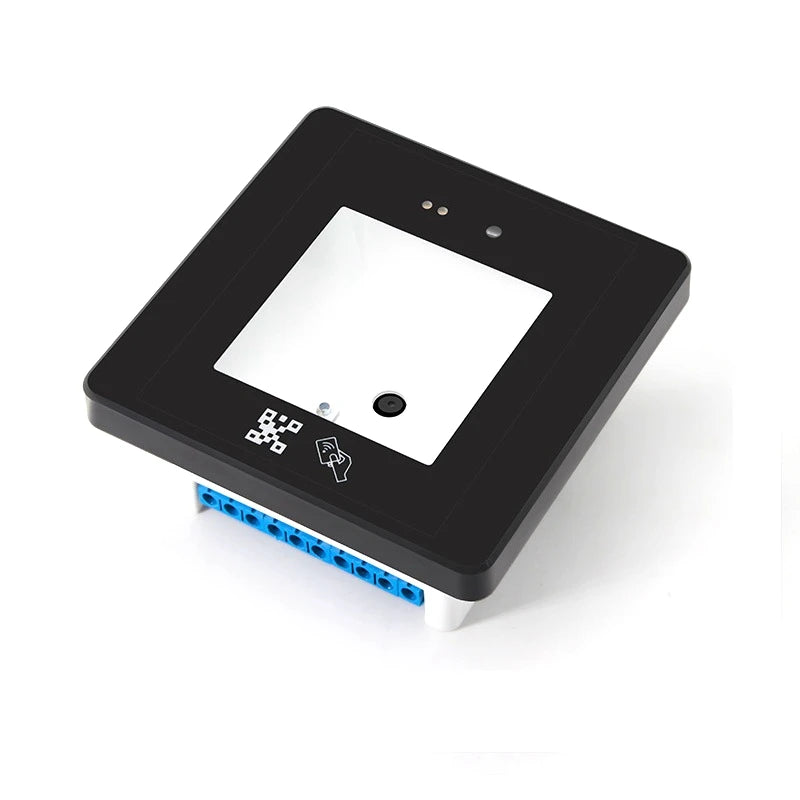

QR code + RFID card reader is a new generation of smart card reader developed by our company. The appearance of the product adopts the standard 86 box industry standard. The scanning speed is fast, the recognition rate is high, the compatibility is strong, and At present, it is widely used in business office building visitors to enter personnel management, scenic visitor management, community visitor access management, administrative hall access control, supporting gates, Access control, visitor machines, smart homes, etc.; to achieve a perfect upgrade for the traditional credit card system in various industries.

a technical parameter



parameter



parameter

Card type

EM card for 125khzorISO1443A MF card for 13.56mhz

Barcode type

QR,Bar code

communication method

Wiegand/USB/RS232/RS485

Decoding mode

Image decoding

Reading direction (bar code)

With the lens as the center point, the slope is 45°

Scan code feature

Auto-sensing, buzzer

Operating Voltage

8-12V

Working current

800mA

Card reading distance

(card)

3~6CM

Reading speed

<200ms

Reading distance

(QR code)

0-20cm

Material

PC and tempered glass (scanning code window)

Working humidity

10%~90%

Operating temperature

-20 ° C ~ 70 ° C

operating system

WindowsXP/7/8/10), Linux

Size

86mm × 86mm × 42mm

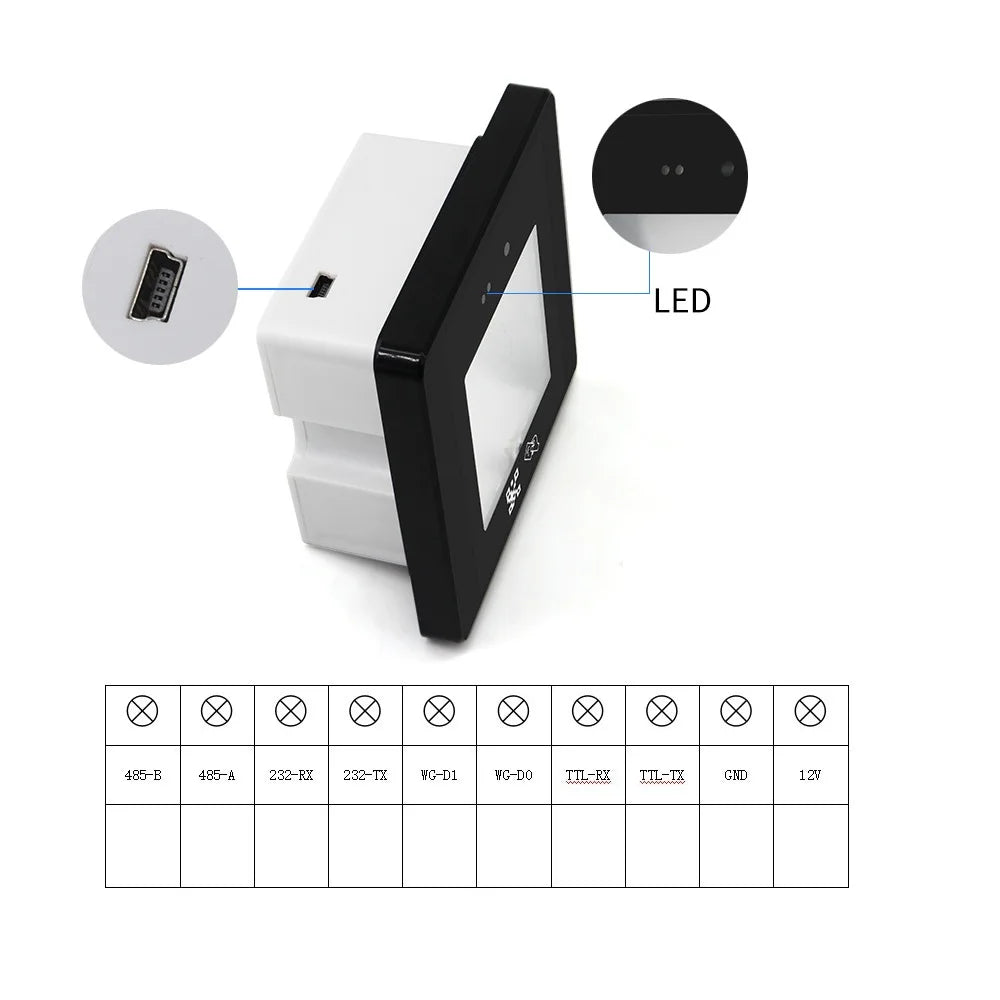

Indicator light

Red work light, green feedback light, green network light

Weight

150G

Remarks

Restore factory settings: Use a sharp object to insert the Reset hole behind the QR code card reader, and the card reader will automatically restart and release.





SPECIFICATIONS

Brand Name: LIHTNE

Certification: CE

High-concerned chemical: none

Model Number: R35C/D

Origin: Mainland China

Package Size: 12cm x 12cm x 4cm (4.72in x 4.72in x 1.57in)

Package Weight: 0.2kg (0.44lb.)

Unit Type: piece

QR code + RFID card reader is a new generation of smart card reader developed by our company. The appearance of the product adopts the standard 86 box industry standard. The scanning speed is fast, the recognition rate is high, the compatibility is strong, and At present, it is widely used in business office building visitors to enter personnel management, scenic visitor management, community visitor access management, administrative hall access control, supporting gates, Access control, visitor machines, smart homes, etc.; to achieve a perfect upgrade for the traditional credit card system in various industries.

a technical parameter



parameter



parameter

Card type

EM card for 125khzorISO1443A MF card for 13.56mhz

Barcode type

QR,Bar code

communication method

Wiegand/USB/RS232/RS485

Decoding mode

Image decoding

Reading direction (bar code)

With the lens as the center point, the slope is 45°

Scan code feature

Auto-sensing, buzzer

Operating Voltage

8-12V

Working current

800mA

Card reading distance

(card)

3~6CM

Reading speed

<200ms

Reading distance

(QR code)

0-20cm

Material

PC and tempered glass (scanning code window)

Working humidity

10%~90%

Operating temperature

-20 ° C ~ 70 ° C

operating system

WindowsXP/7/8/10), Linux

Size

86mm × 86mm × 42mm

Indicator light

Red work light, green feedback light, green network light

Weight

150G

Remarks

Restore factory settings: Use a sharp object to insert the Reset hole behind the QR code card reader, and the card reader will automatically restart and release.
