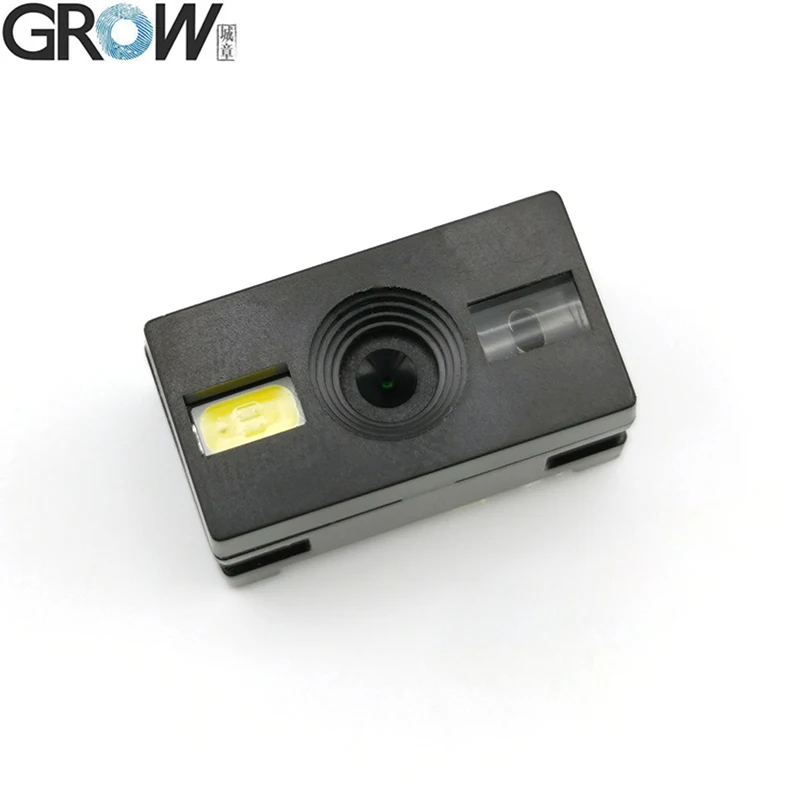

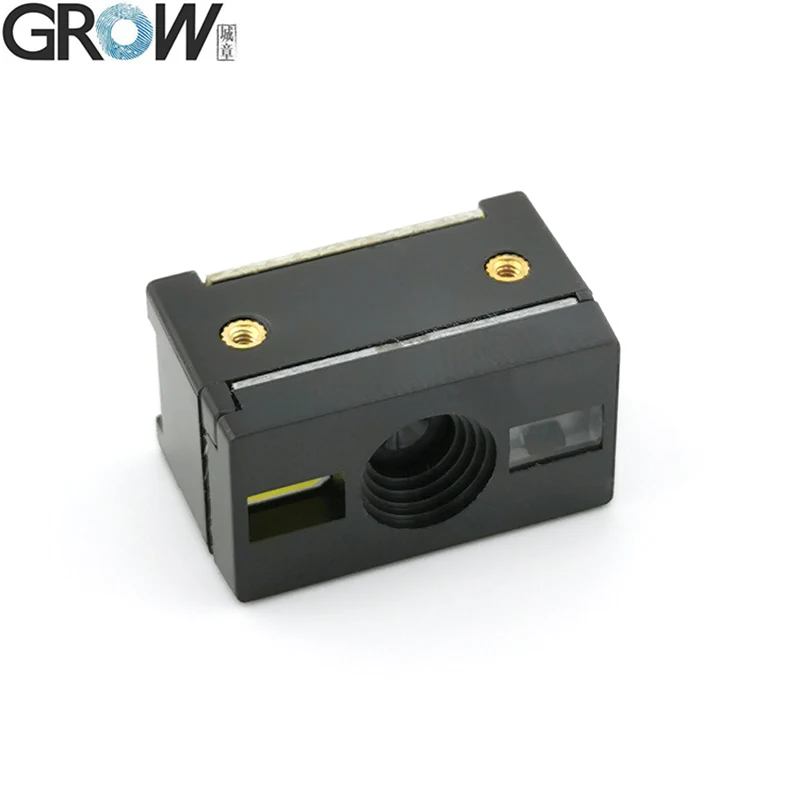

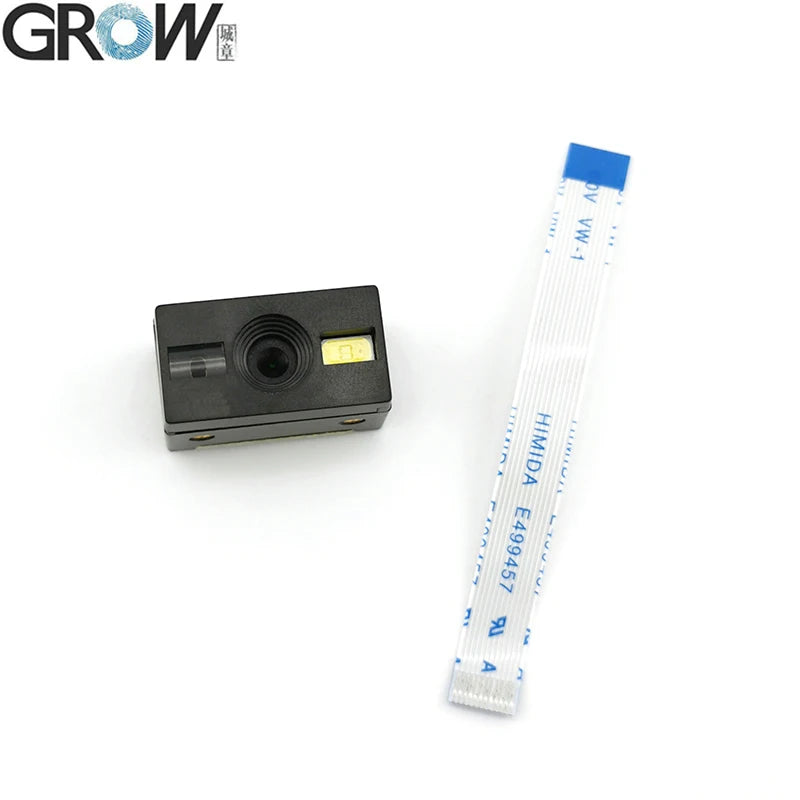

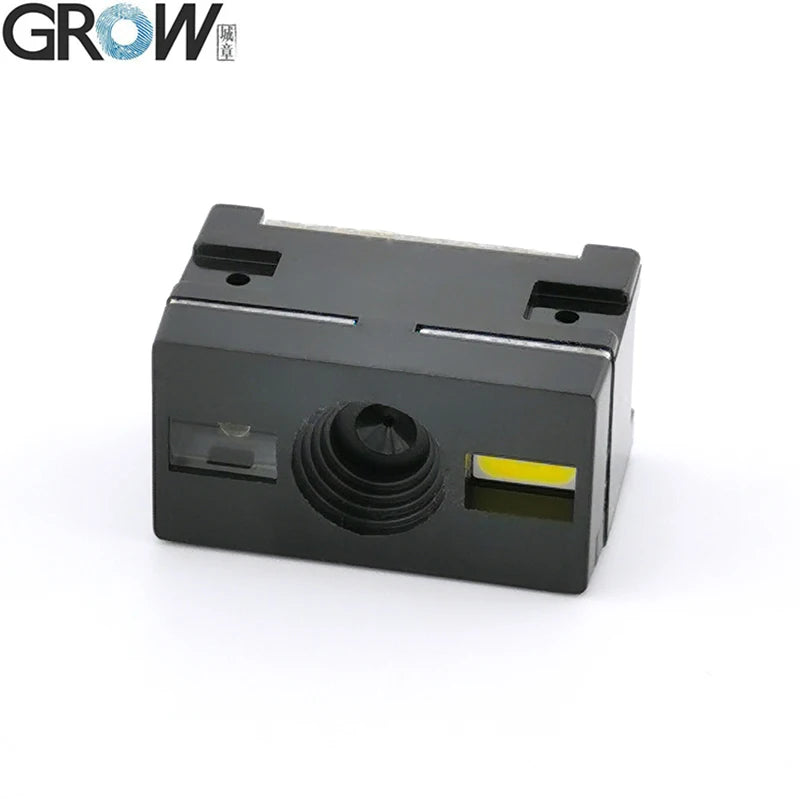

GROW GM65-S 1D/QR/2D Bar Code Scanner QR Code Reader Barcode Reader Module

GROW GM65-S 1D/QR/2D Bar Code Scanner QR Code Reader Barcode Reader Module

  • Product SKU:
Availablility: Available to Order
£39.10 £41.62
Wishlist Compare

SPECIFICATIONS

Accuracy of Reading: ≥4mil

Brand Name: grow

Certification: CE

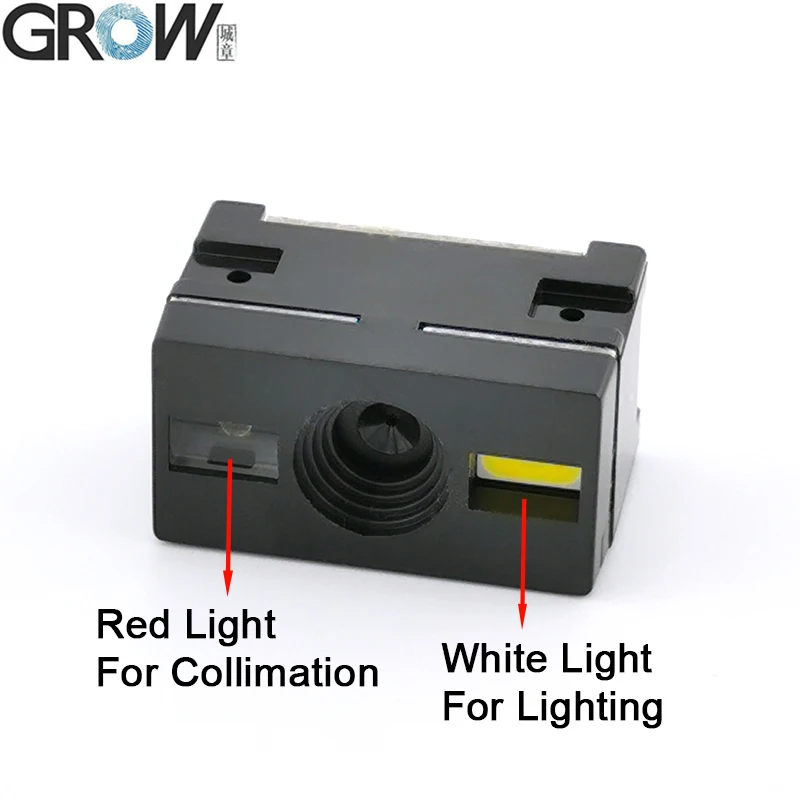

Collimate: Red LED

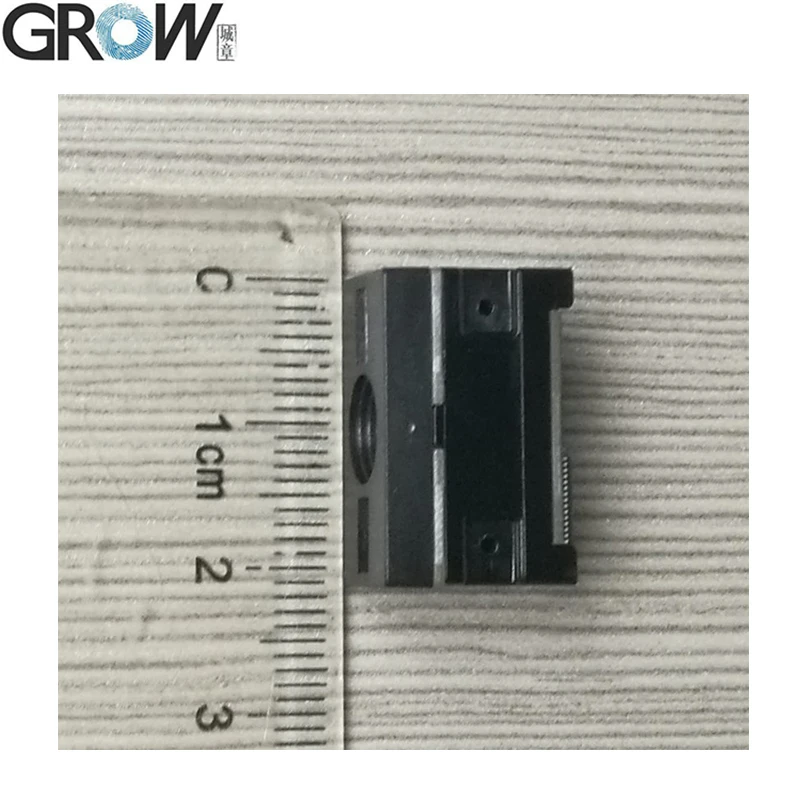

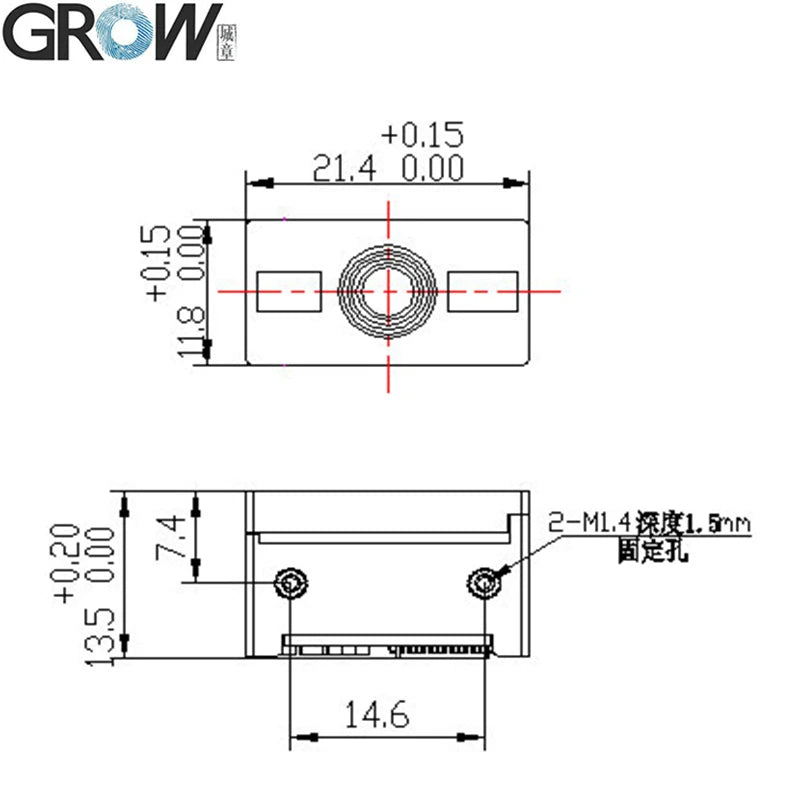

Dimension: 21.4*13.5*11.8mm

High-concerned chemical: none

Interface Type: USB, TTL232

Lighting: White LED

Model Number: GM65-S

Operating Voltage: 3.3V

Optical Resolution: 640*480CMOS

Origin: Mainland China

Product Type: Bar Code Scanner

Scan Breadth: A4

Scan Element Type: CMOS

Scan Speed: 4mil

Scanning Light Source: Natural Light + LED

Signal Connection Type: none

Type: Barcode Scanner










1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.
2. High-efficiency recognization and high upload speed for improving your working efficiency.
3. With buzzer for reminding you that the scanning successfully or not.
4. Compatible with USB and UART interface.
5. Over 180 configurable options
6. Macro support replace a string in the bar code with another
7. Programmable preamble postamble and termination strings
8. Superior reading performance utilizing advanced decoding algorithms



Model
GM65S
Type
Barcode Scanner
Decoding Ability
1D: EAN-13, EAN-8, UPC-A, UPC-E ISSN, ISBN, CodaBar,Code 128, Code93, ITF-14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 39,Code 11, MSI-Plessey, GS1 Composite,GS1-Databar (RSS).
2D: QR Code, Data Matrix, PDF417, Micro QR, Micro PDF417, Aztec

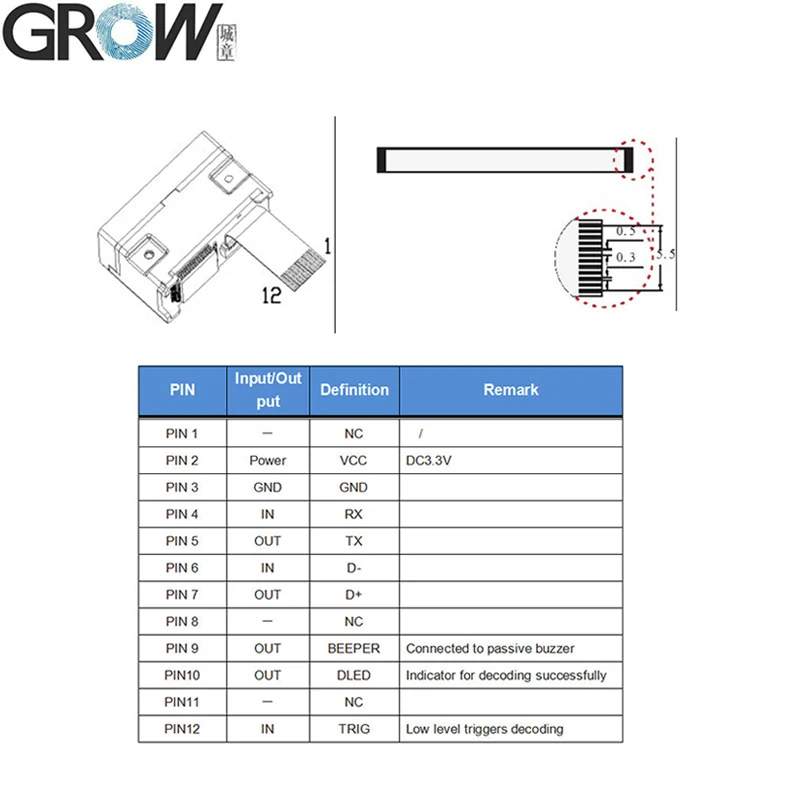

Interface
USB2.0 \ UART
Resolution
0.10mm (4mil)
Operating Voltage
3V
Operating Current
120mA
Weight
7g
Size
21.4*13.5*11.8mm
Type of Illuminant
617nm LED(Aimer), 6500K LEDs(Illumination)
LED Indicator:Buzzer and bi-color light:
Red-power, Blue-decoding Successfully
Scan Angle
0-360°, Pitch:±65°or greater, Yaw:±60°or greater
Scanning angle Inclination angle
34°, Elevation angle 26°
Print Contrast
30% minimum reflective difference
Reading Distance
25 - 250mm
Operating Temperature
-20 degrees to 55 degrees
Storage Temperature
-40 degrees to 65 degrees
Temperature Humidity
5% to 95% Relative humidity, Non-condensing
Light Levels
0-85000LUX



·Provide User Manual

You can download the GM65-S user manual from this website link:
https://www.dropbox.com/sh/buysgr2aeutuub3/AADsvupiGseFm-6IowMBWGCOa?dl=0























SPECIFICATIONS

Accuracy of Reading: ≥4mil

Brand Name: grow

Certification: CE

Collimate: Red LED

Dimension: 21.4*13.5*11.8mm

High-concerned chemical: none

Interface Type: USB, TTL232

Lighting: White LED

Model Number: GM65-S

Operating Voltage: 3.3V

Optical Resolution: 640*480CMOS

Origin: Mainland China

Product Type: Bar Code Scanner

Scan Breadth: A4

Scan Element Type: CMOS

Scan Speed: 4mil

Scanning Light Source: Natural Light + LED

Signal Connection Type: none

Type: Barcode Scanner










1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer. 2. High-efficiency recognization and high upload speed for improving your working efficiency. 3. With buzzer for reminding you that the scanning successfully or not. 4. Compatible with USB and UART interface. 5. Over 180 configurable options 6. Macro support replace a string in the bar code with another 7. Programmable preamble postamble and termination strings 8. Superior reading performance utilizing advanced decoding algorithms

Model GM65S
Type Barcode Scanner
Decoding Ability 1D: EAN-13, EAN-8, UPC-A, UPC-E ISSN, ISBN, CodaBar,Code 128, Code93, ITF-14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 39,Code 11, MSI-Plessey, GS1 Composite,GS1-Databar (RSS). 2D: QR Code, Data Matrix, PDF417, Micro QR, Micro PDF417, Aztec
Interface USB2.0 \ UART
Resolution 0.10mm (4mil)
Operating Voltage 3V
Operating Current 120mA
Weight 7g
Size 21.4*13.5*11.8mm
Type of Illuminant 617nm LED(Aimer), 6500K LEDs(Illumination)
LED Indicator:Buzzer and bi-color light: Red-power, Blue-decoding Successfully
Scan Angle 0-360°, Pitch:±65°or greater, Yaw:±60°or greater
Scanning angle Inclination angle 34°, Elevation angle 26°
Print Contrast 30% minimum reflective difference
Reading Distance 25 - 250mm
Operating Temperature -20 degrees to 55 degrees
Storage Temperature -40 degrees to 65 degrees
Temperature Humidity 5% to 95% Relative humidity, Non-condensing
Light Levels 0-85000LUX


·Provide User Manual    You can download the GM65-S user manual from this website link: https://www.dropbox.com/sh/buysgr2aeutuub3/AADsvupiGseFm-6IowMBWGCOa?dl=0
