SPECIFICATIONS

Brand Name: Asia-Teco

Certification: CE,FCC

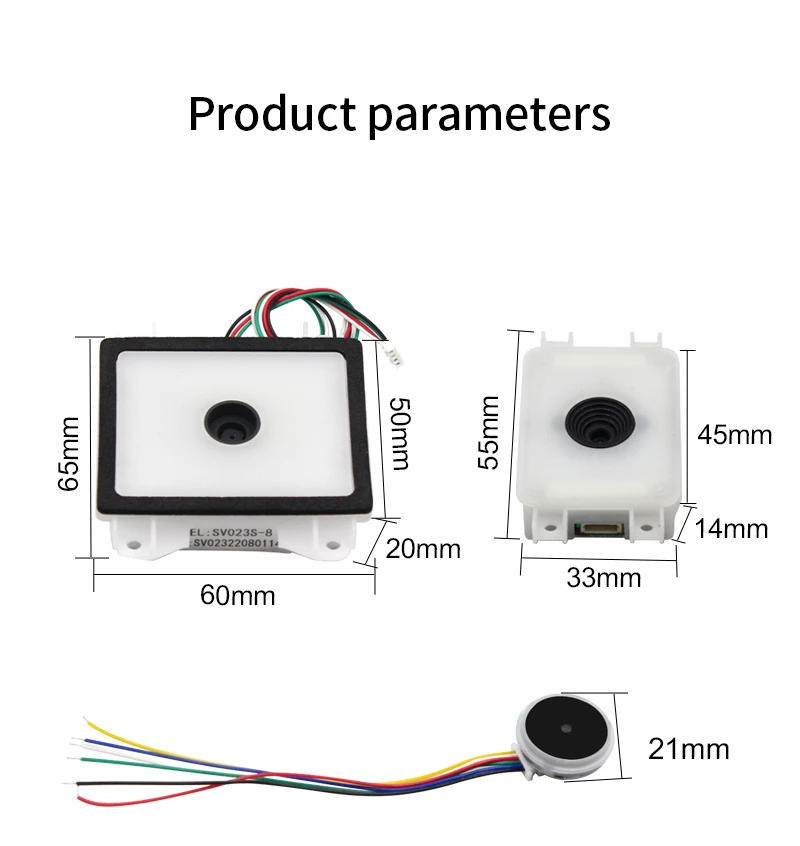

Dimensions: 44.5mm x33.4mm x 13.8mm

Field of View: 93°(H),55°(V)

High-concerned chemical: none

Image (Pixels): 1280 pixels (H)x720 pixels

Light Source: white color LED

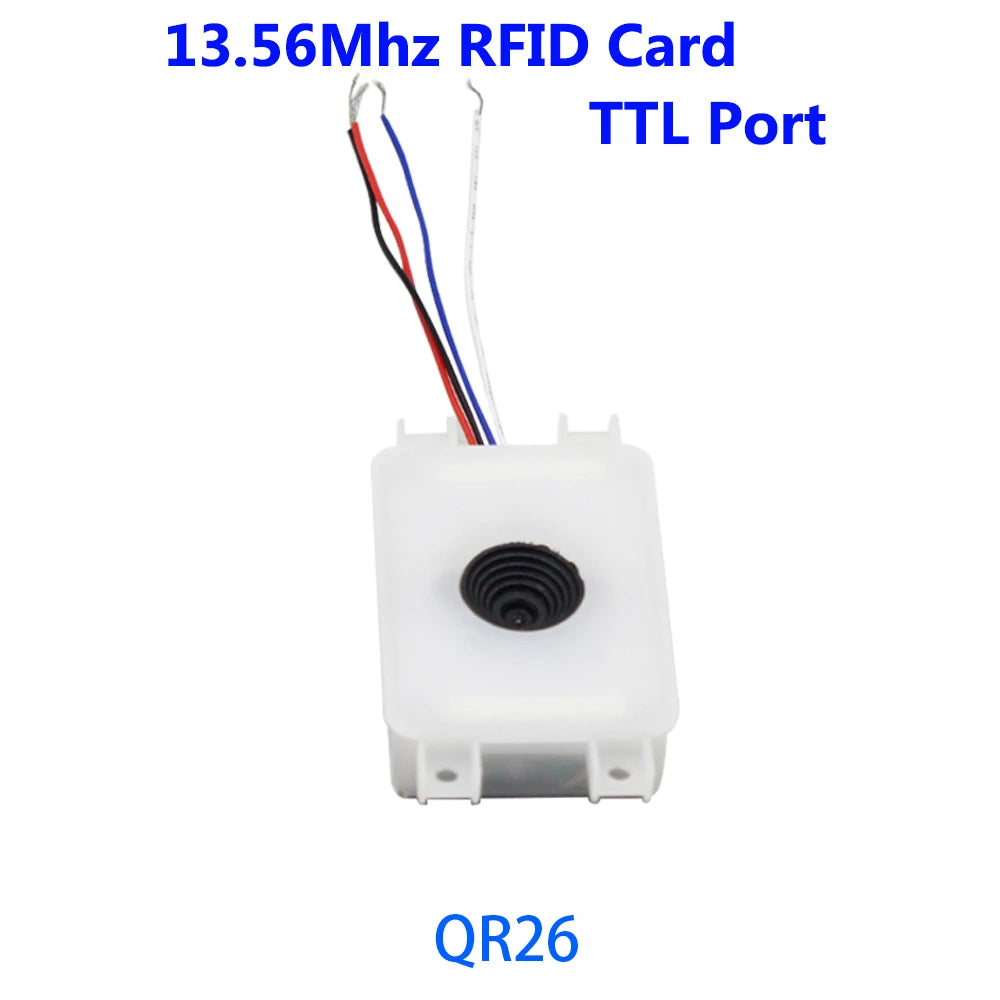

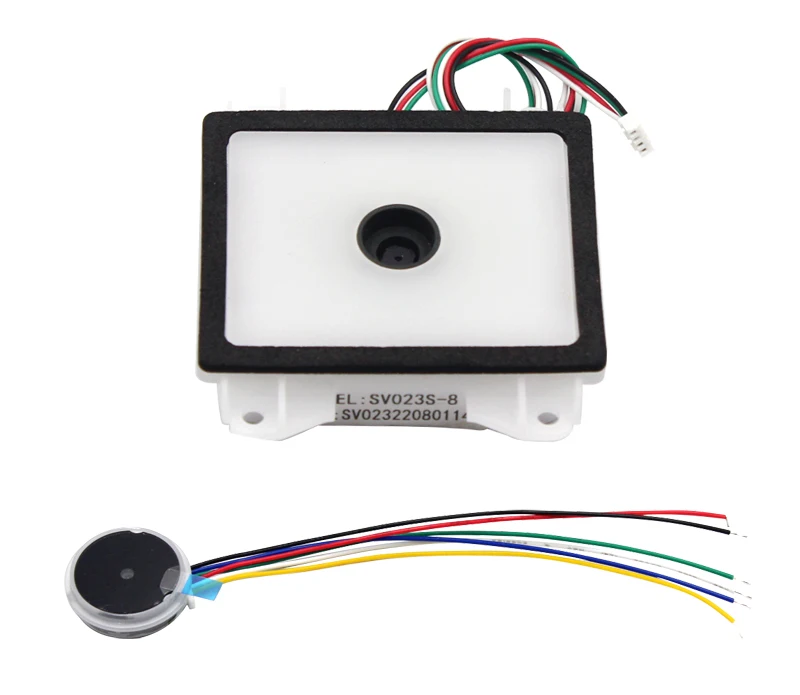

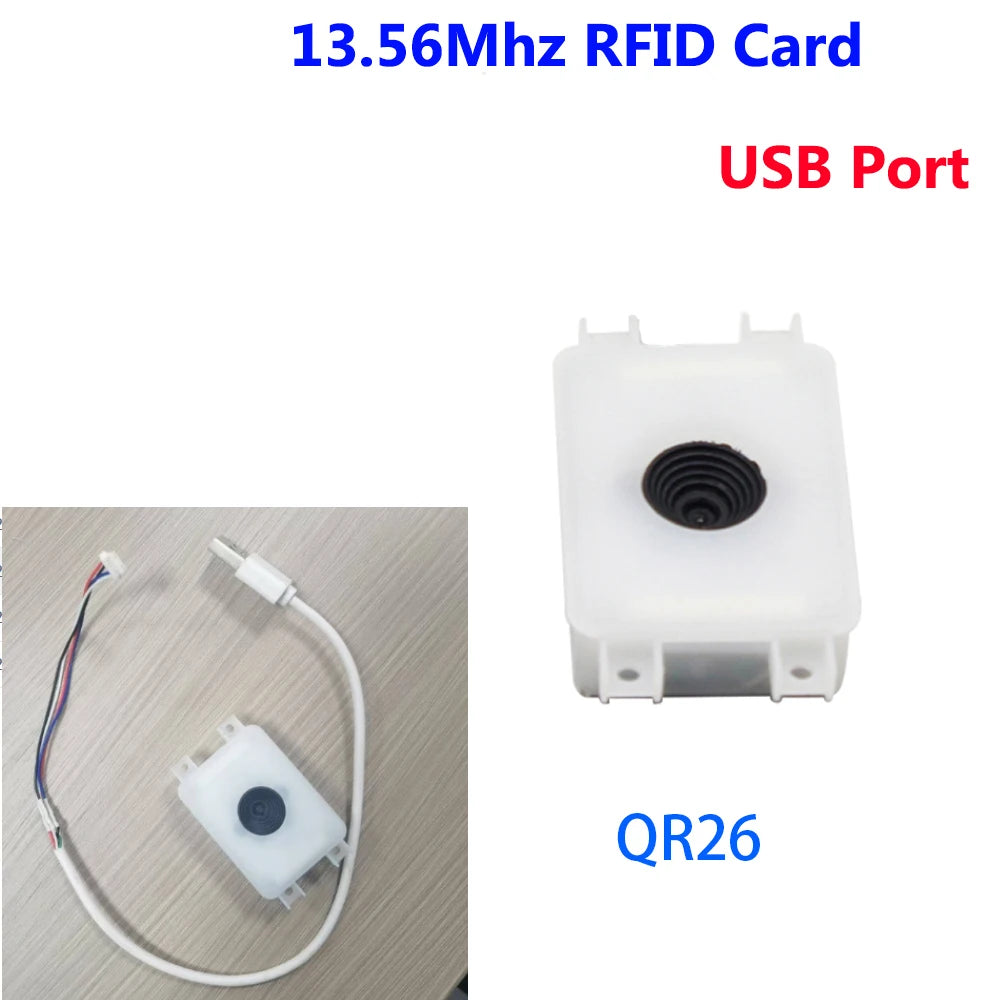

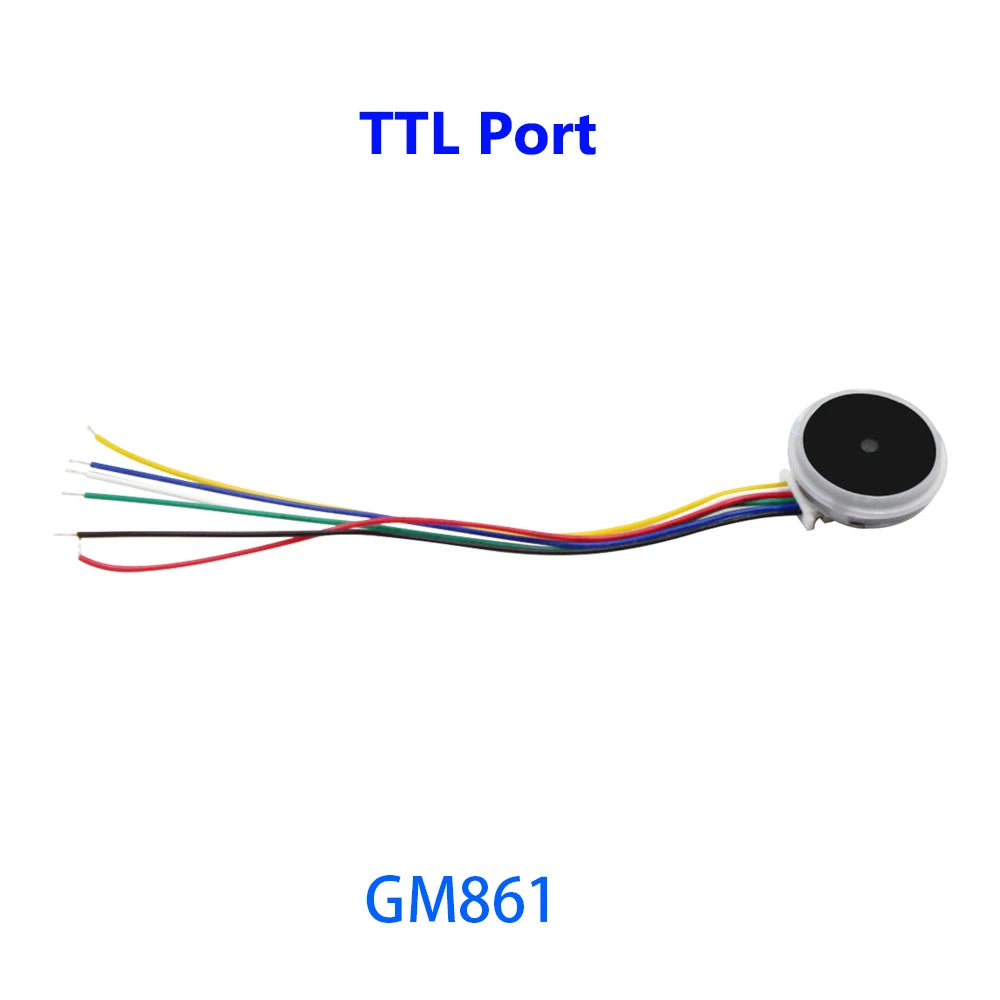

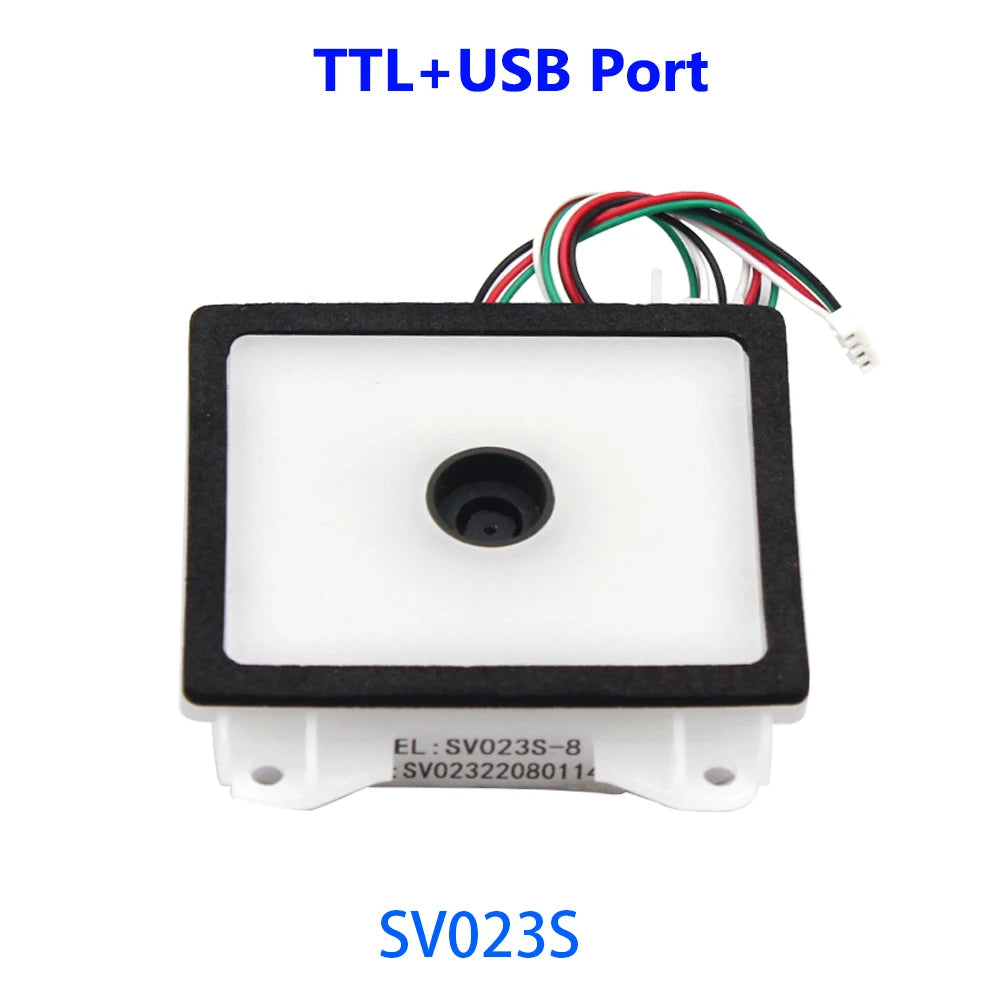

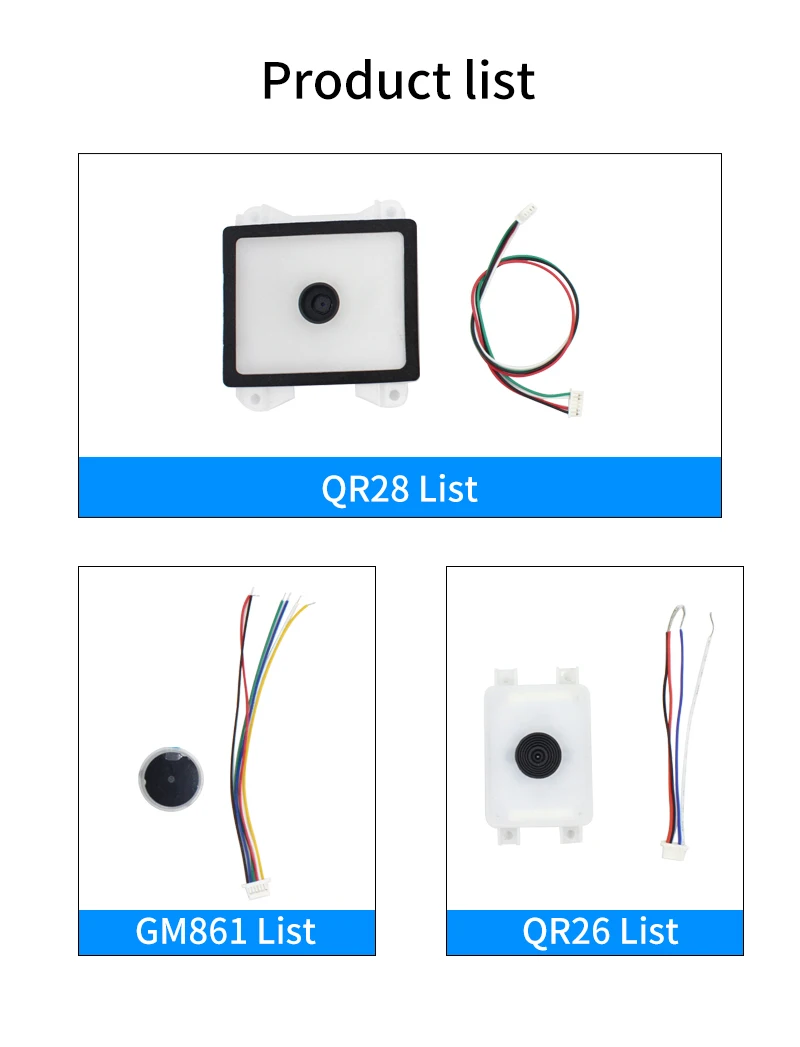

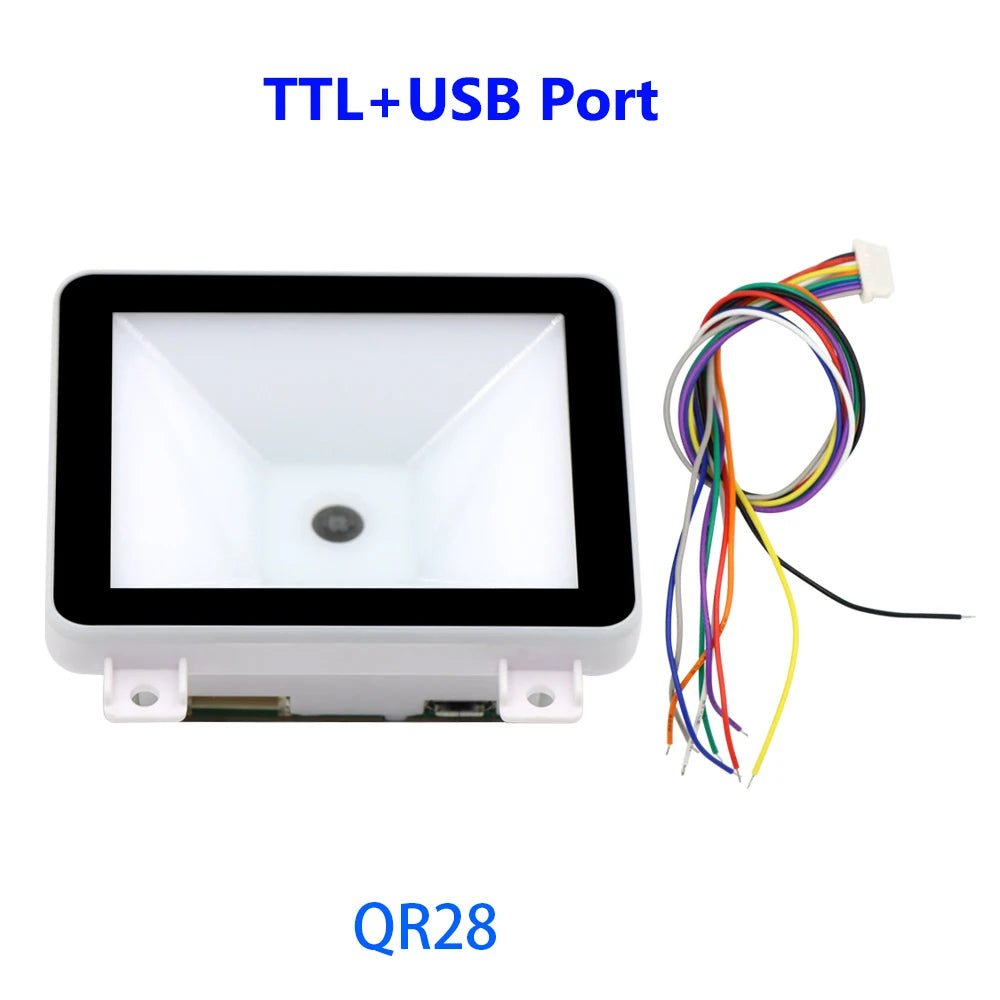

Model Number: QR26/QR28/GM861/SV023S

Motion Tolerances: ≤40cm/s

Origin: Mainland China

PIN1: TXD

PIN2: RXD

PIN3: USB-DM

PIN4: USB-DP

PIN5: VCC

PIN6: GND

Print Contrast: 20% minimum refective difference

RTI: 130℃

Roll /Pitch/Yaw: 360°,+65°,±60°

Stand-by Current: 170mA

Starting Current: 260mA

Voltage: 5±5% VDC(If powered by 3.3V, the lighting is slightly dim)

Weight: 12g

Work Current: 310mA

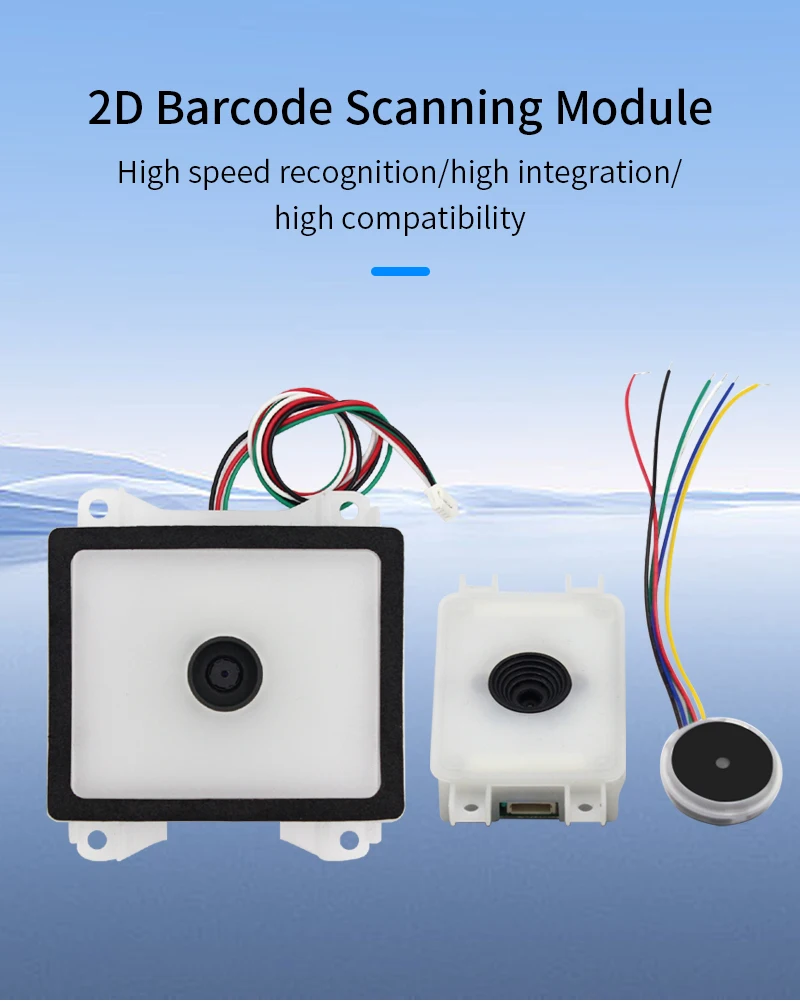

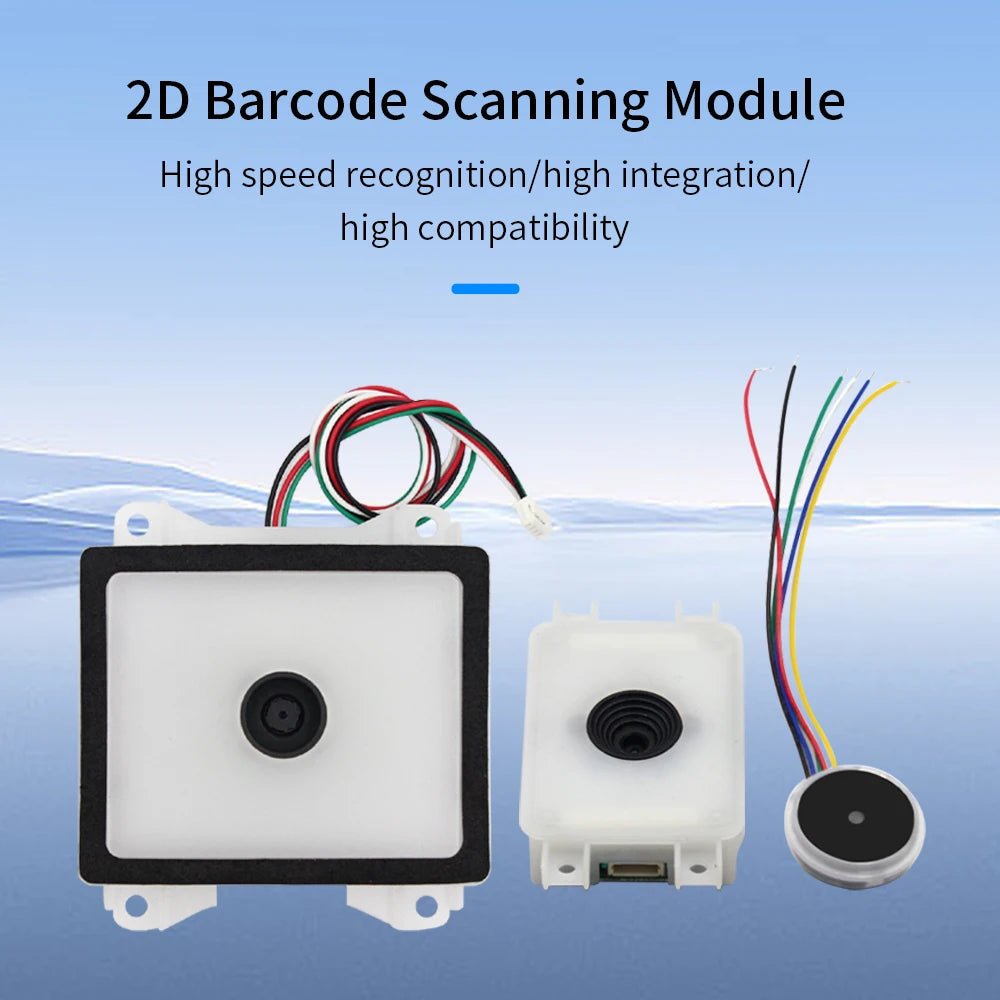

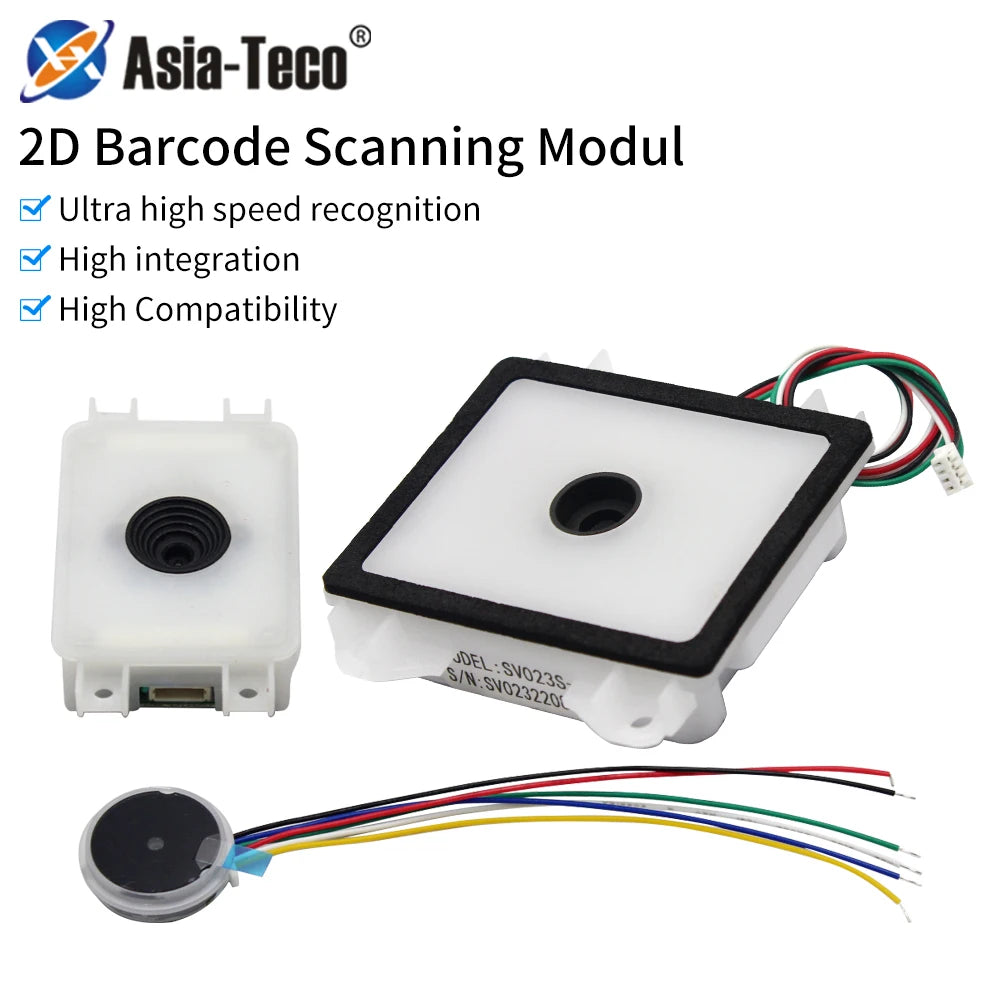

GM861 Series UART USB RS232 DC5V Barcode Scanner Reader Module 1D/2D QR Code Bar Code Reader For Android Arduino PDF417 MaxiCode

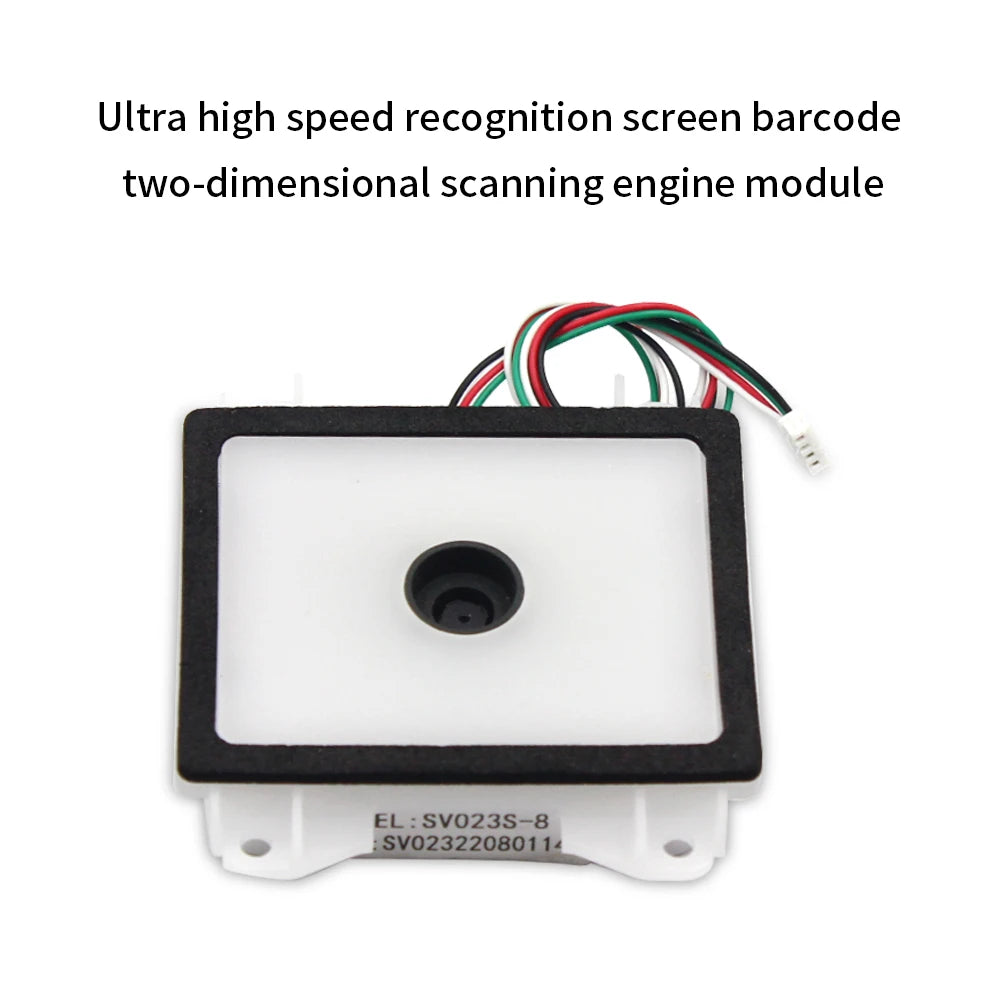

High speed identification screen bar code two-dimensional scanning engine module integration,

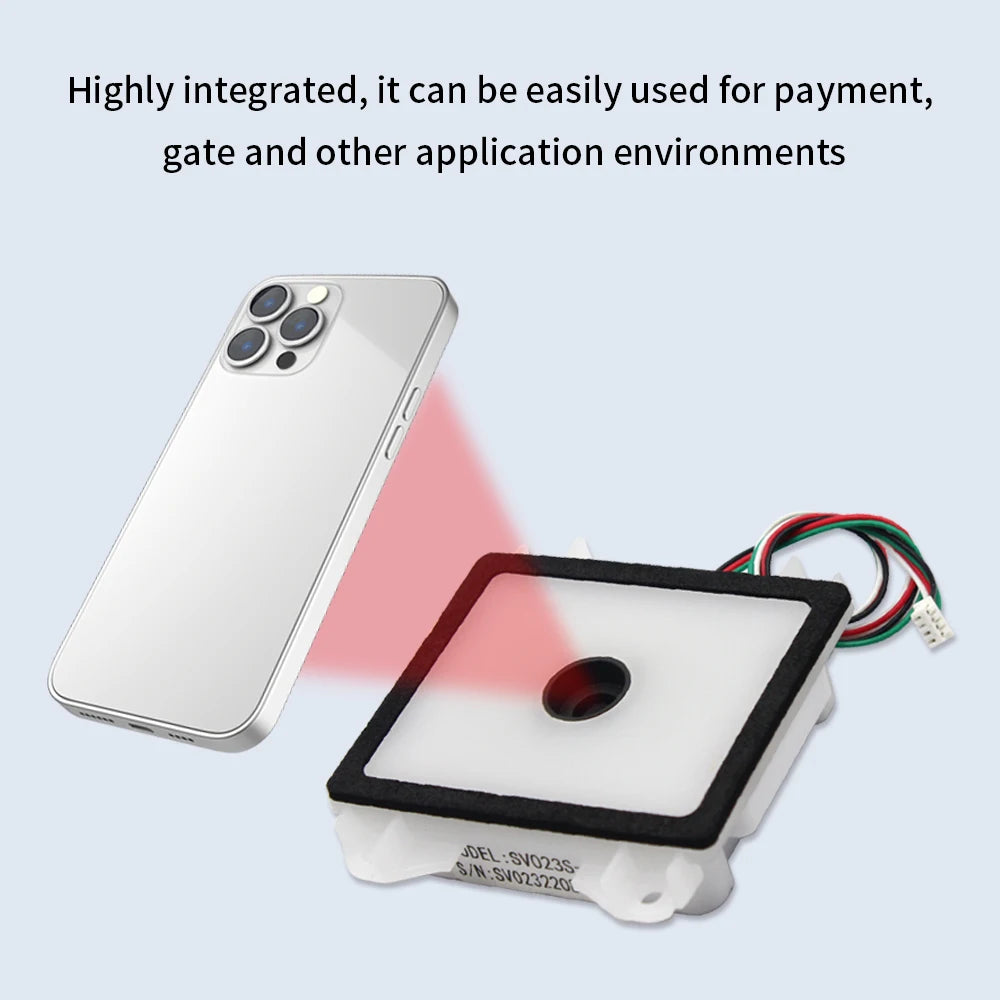

Can be very convenient for payment, gate and other application environment

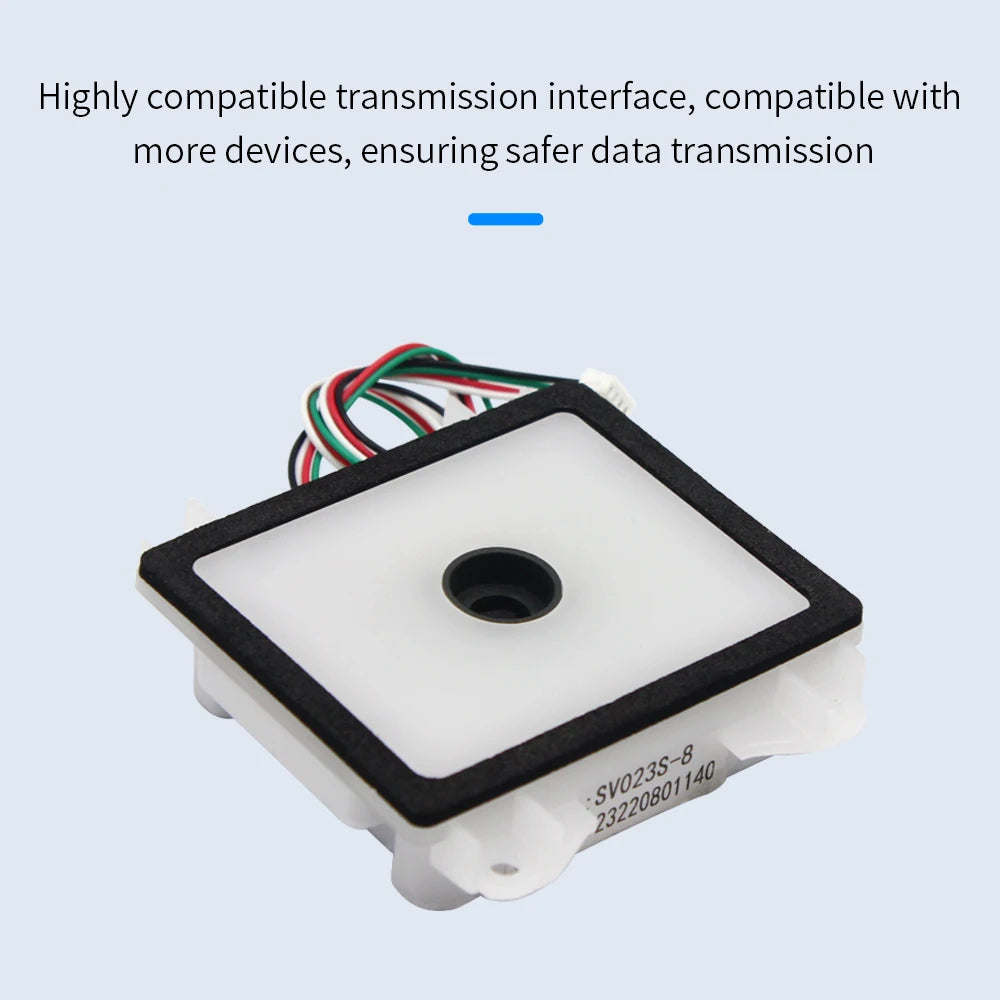

Highly compatible transmission interface for more devices and more secure data transmission

Symbology Decode Capability

1-D: Codabar、 Code 39、 Code 32 Pharmaceutical (PARAF). Interleaved 2 of 5、 NEc 2 of 5、 Code 93. Straight2 of 5 Industial, Straight 2 of 5 IATA , Matrix 2 of 5 ,Code 11、Code 128、GS1-128、UPC-A.UPC-E.EAN/JAN-8、EAN/JAN-13、MSI、GS1 DataBar Omnidirectional、 GS1 DataBar Limited、 Gs1 DataBar Expanded、China Post(Hong Kong 2 of 5)、Korea Post.

2-D: Codeblock A.CpdeblockF、PDF417、Micro PDF417.Gs1 Composite Codes,QR Code、 Data Matrix.MaxiCode、Aztec、HANXIN.

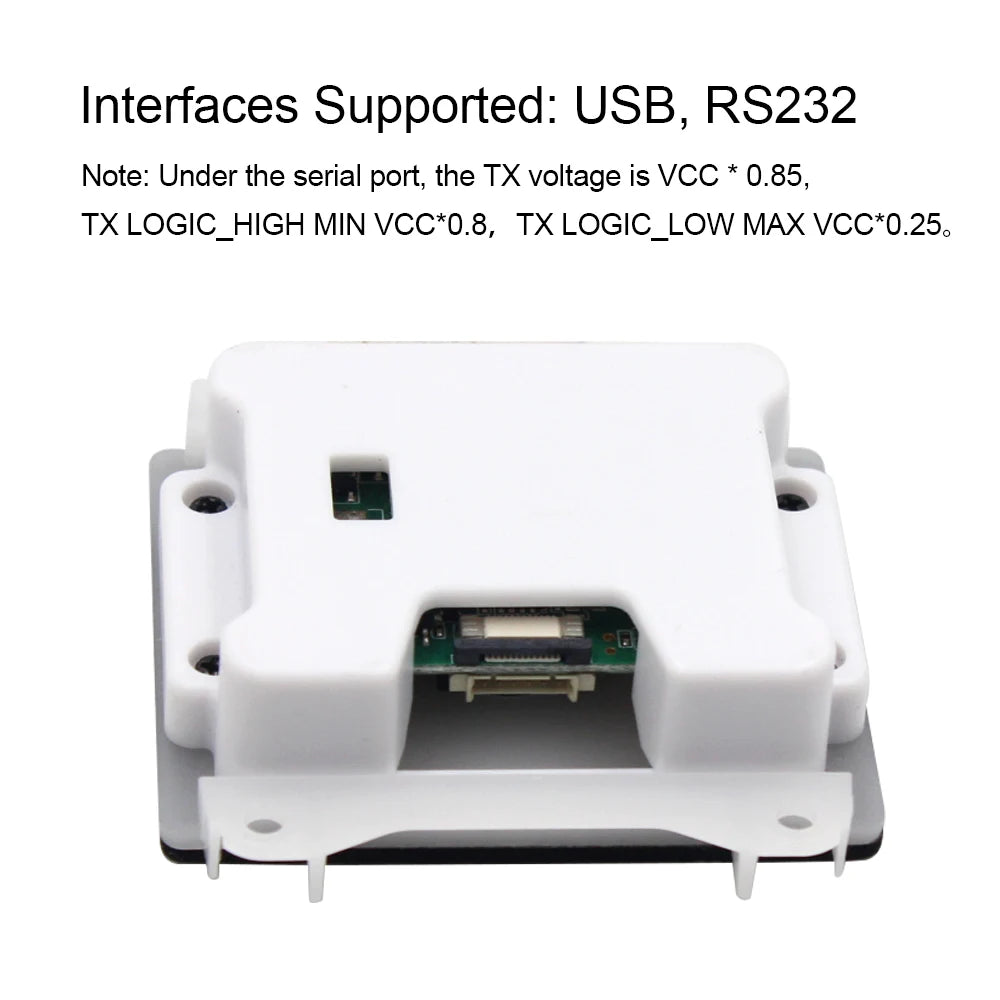

Interfaces Supported:USB,RS232（Note: Under the serial port, the TX voltage is VCC * 0.85, TX LOGIC HIGH MIN VCC*0.8, TX LOGIC LOW MAX VCC*0.25）

• This part # has a 30 days limited exchange warranty for replacement only with the same part. The product may have other warranties like manufacturer, service, or 90 days extended warranty that you can confirm with our sales department.
• All hardware sold are bulk equipment with no drivers and cd included. If you need a driver or CD installation for a particular item please contact our sales department to confirm the availability.
• If original part is not available to order, we may offer you an alternative but  compatible part from a different manufacturer.
