SPECIFICATIONS

Application: Other

Brand Name: Jessinie

Condition: New

Dissipation Power: -

High-concerned chemical: none

Operating Temperature: 0-50 degree

Origin: Mainland China

Package: TQFP

Supply Voltage: DC 5V

Type: Logic ICs

is_customized: Yes

Product Introduction:

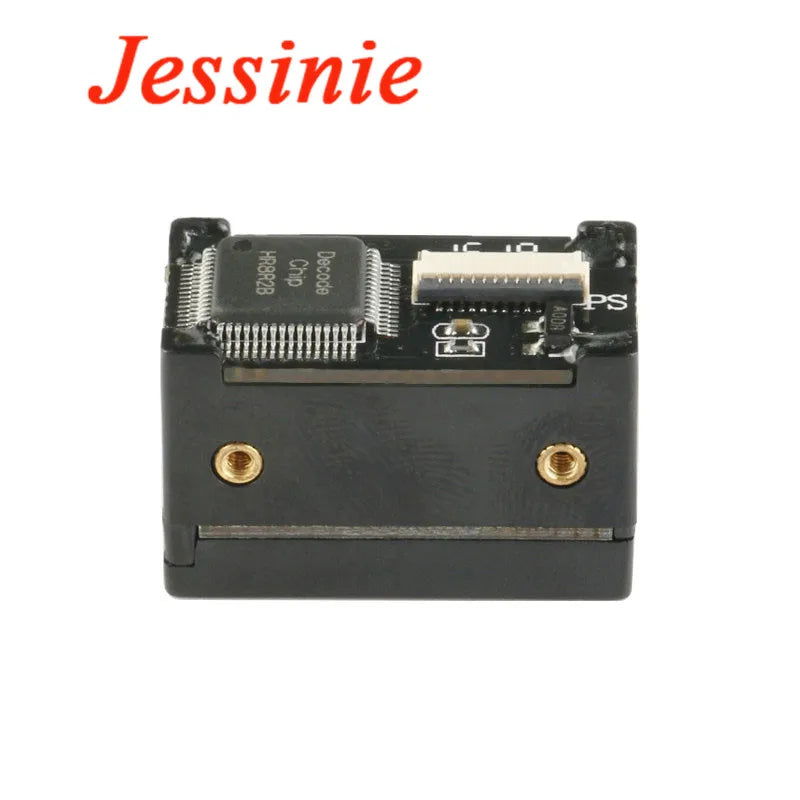

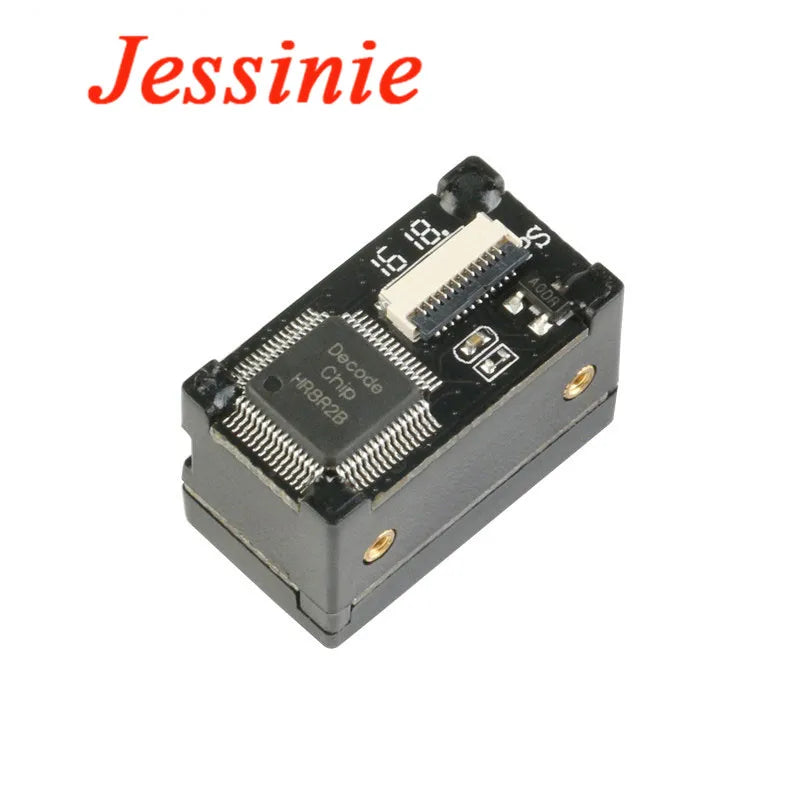

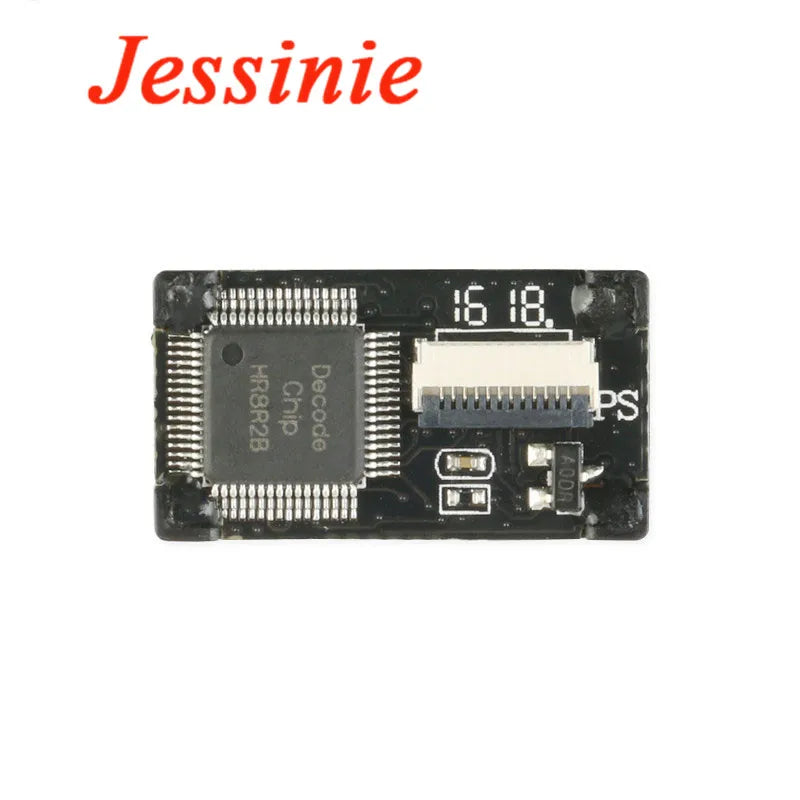

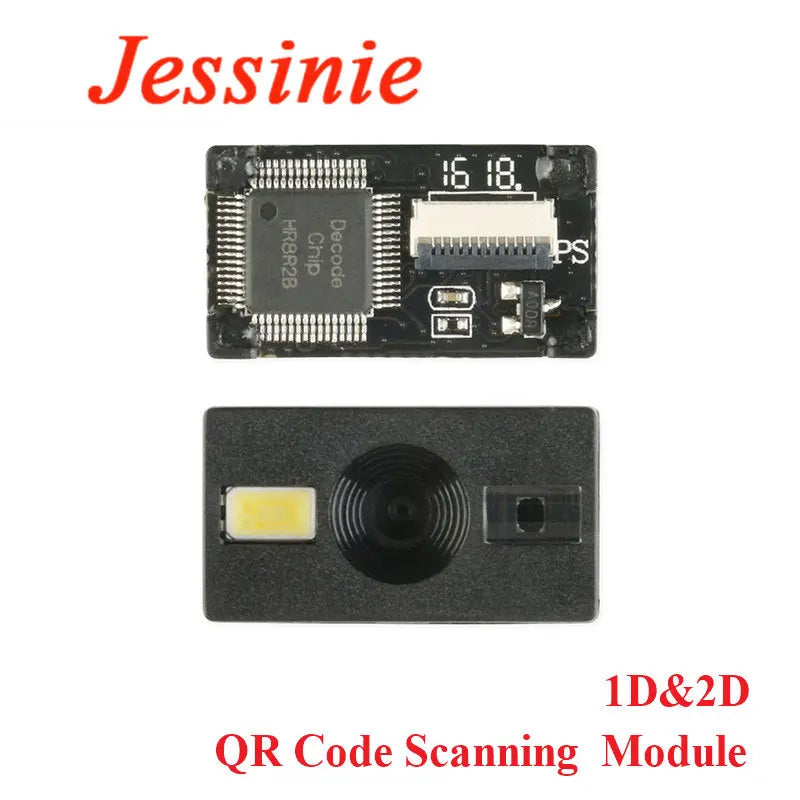

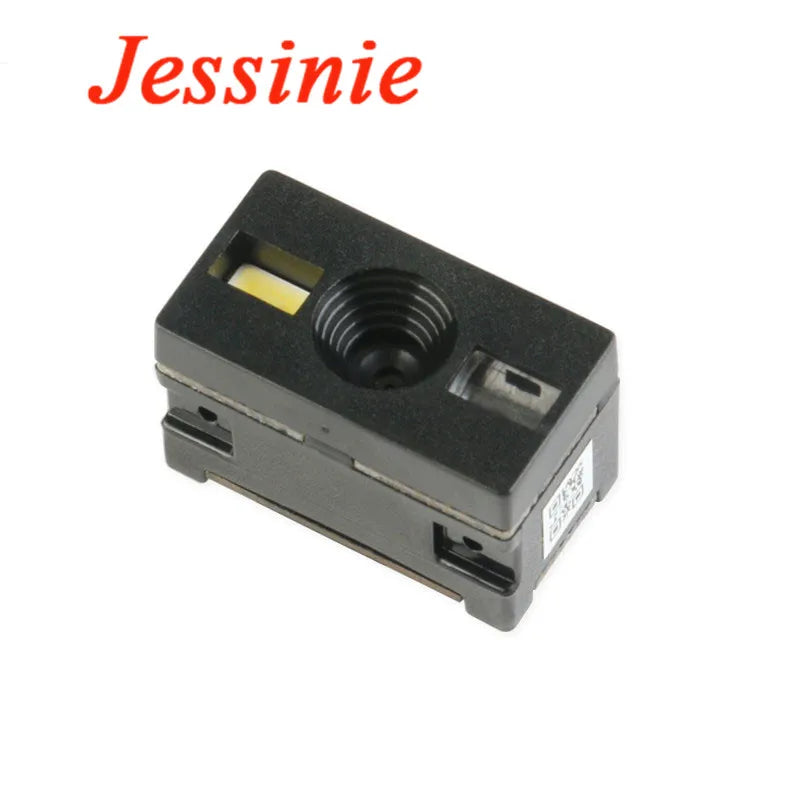

• GM65 scanning device module has low power consumption, working current less than 150mA, integrated design and small size;

• Support TTL232 and USB (Chinese free drive) interface;

• Support all common 1D barcodes and common 2D codes to directly identify the phone screen.

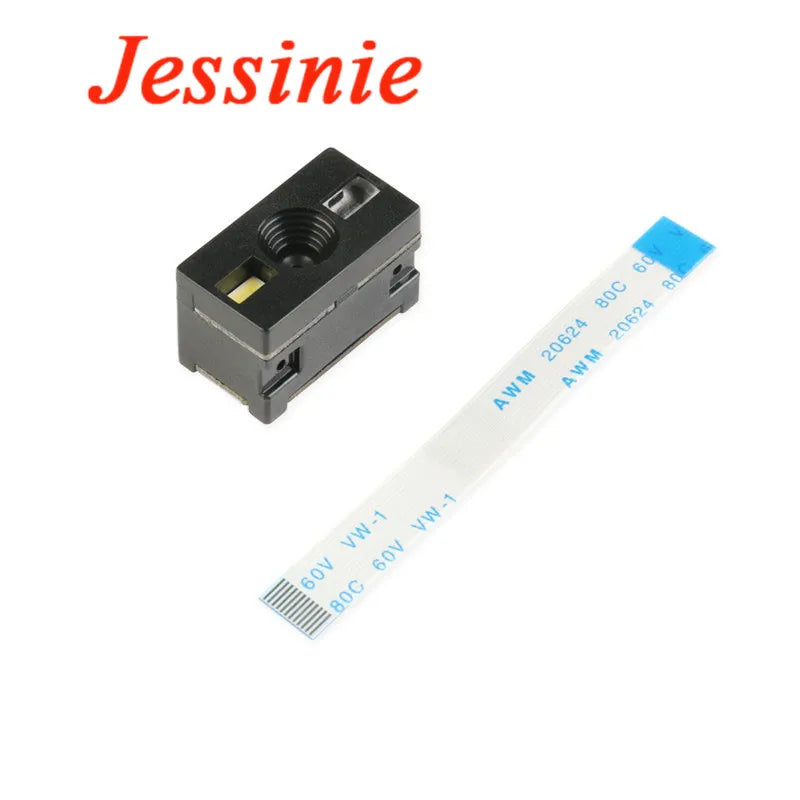

• Buying the scan head separately will provide the line order of the cable

• Type that can be read:

1. Read the barcode type (1D): UPC/EAN, UPC/EAN with supplementals,  BooklandEAN, ISSN, UCC Coupon Extended Code, Code 128,  GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code  39, Code 32, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5,  Discrete 2 of 5, Codabar,MSI, Chinese 2 of 5, GS1 DataBar  variants, Korean 3 of 5, ISBT Concat


2. Read the QR code type (2D): QR Code ,PDF417,Data Matrix

The value read by the GM65 module can be directly displayed on a text file such as WORD.

Please connect USB, find a barcode or QR code to scan (not the QR code in the manual), the place where you can input text on the computer will be displayed directly, such as WORD, chat window

  Parameter:

• Optical system: CMOS

• Capture light source: 617nm LED

• Lighting source: 6500K LED

• Reading angle: Rotate 360 °

                                  Deflection ± 60 °

                                  Tilt ± 65°

• Scanning angle: 34 ° (horizontal) 26 ° (vertical)

• Minimum contrast: 30%

• Resolution: ≥ 0. 1mm (4mil)

• Voltage: DC 5V

• Current: 120mA during scanning / 30mA during standby

• Interface: USB, URAT

• Working temperature: Temperature: 0°C～50 °C

• Storage temperature: -40 °C ~ 70 °C

• Working humidity: 10% to 80%

• Ambient light: Ambient light: 0~86,000 lux

  View size chart:     Product Size:

• This part # has a 30 days limited exchange warranty for replacement only with the same part. The product may have other warranties like manufacturer, service, or 90 days extended warranty that you can confirm with our sales department.
• All hardware sold are bulk equipment with no drivers and cd included. If you need a driver or CD installation for a particular item please contact our sales department to confirm the availability.
• If original part is not available to order, we may offer you an alternative but  compatible part from a different manufacturer.
