2D Barcode Scanner Gobal exposure Desktop Flat Hands-free High-performance Scanning Platform 1D 2D QR code Reader for Retail Pay

2D Barcode Scanner Gobal exposure Desktop Flat Hands-free High-performance Scanning Platform 1D 2D QR code Reader for Retail Pay

  • Product SKU: 14:193#TD-X1 1100
Availablility: Available to Order
£50.21 £56.25
Wishlist Compare

SPECIFICATIONS

Brand Name: SYCREADER

Certification: CE,RoHS

Choice: yes

Colour Depth: 48 Bit

Exposure mode: Global exposure

High-concerned chemical: none

Interface Type: USB

Model Number: TD-X1

New upgrade: Small box cigarette data matrix

Novelty: New

Optical Resolution: 800*600

Origin: Mainland China

Product Type: Bar Code Scanner

Scan Breadth: A4

Scan Element Type: CMOS

Scan Speed: 200 scans/second

Scanning Light Source: Natural Light + LED

Signal Connection Type: none

Type: Barcode Scanner

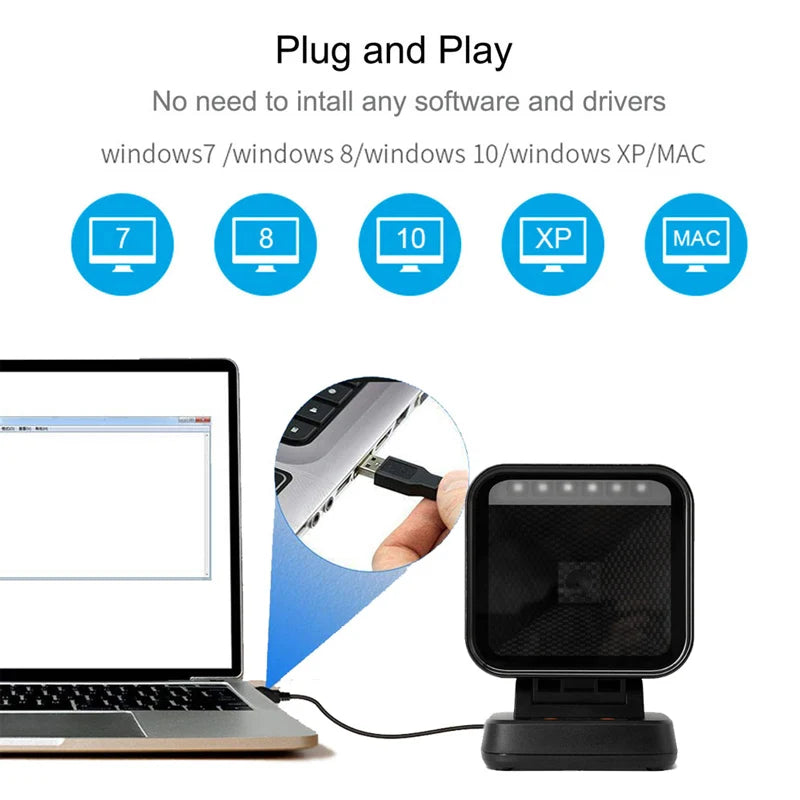

interface: Plug and Play

semi_Choice: yes

weight: 0.55kg

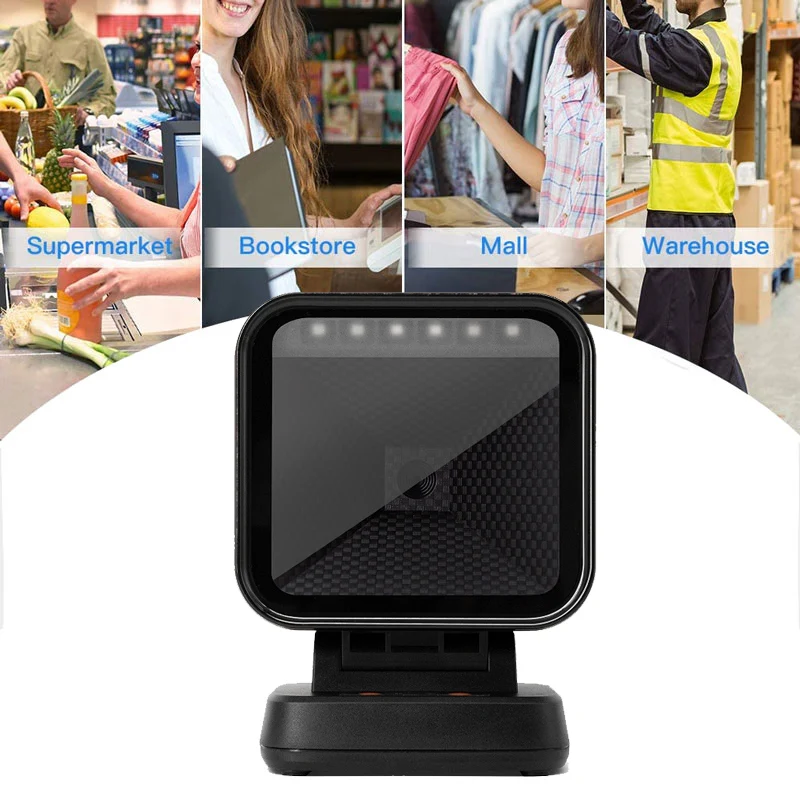

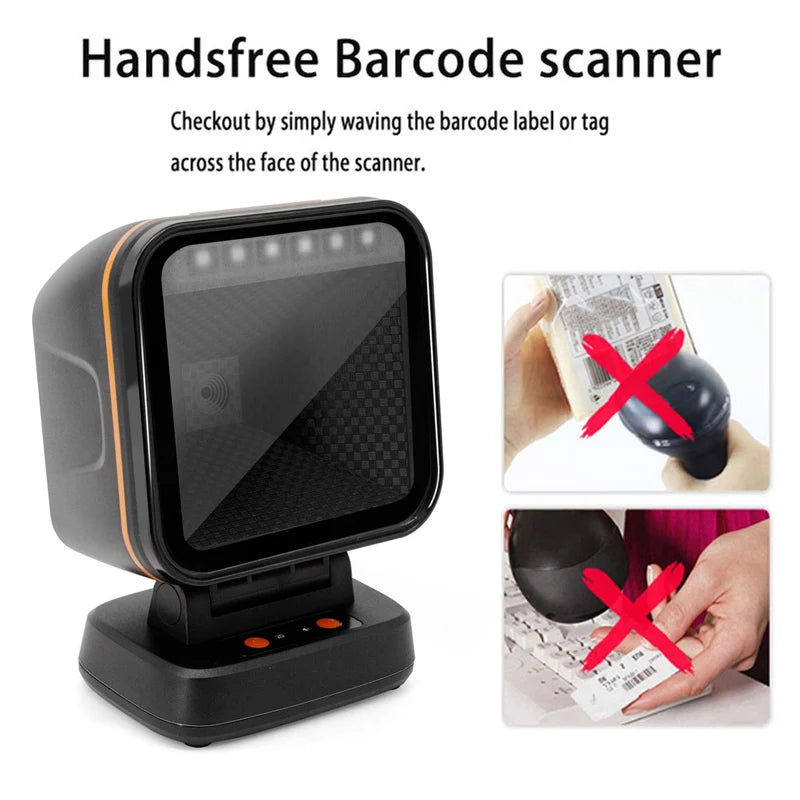

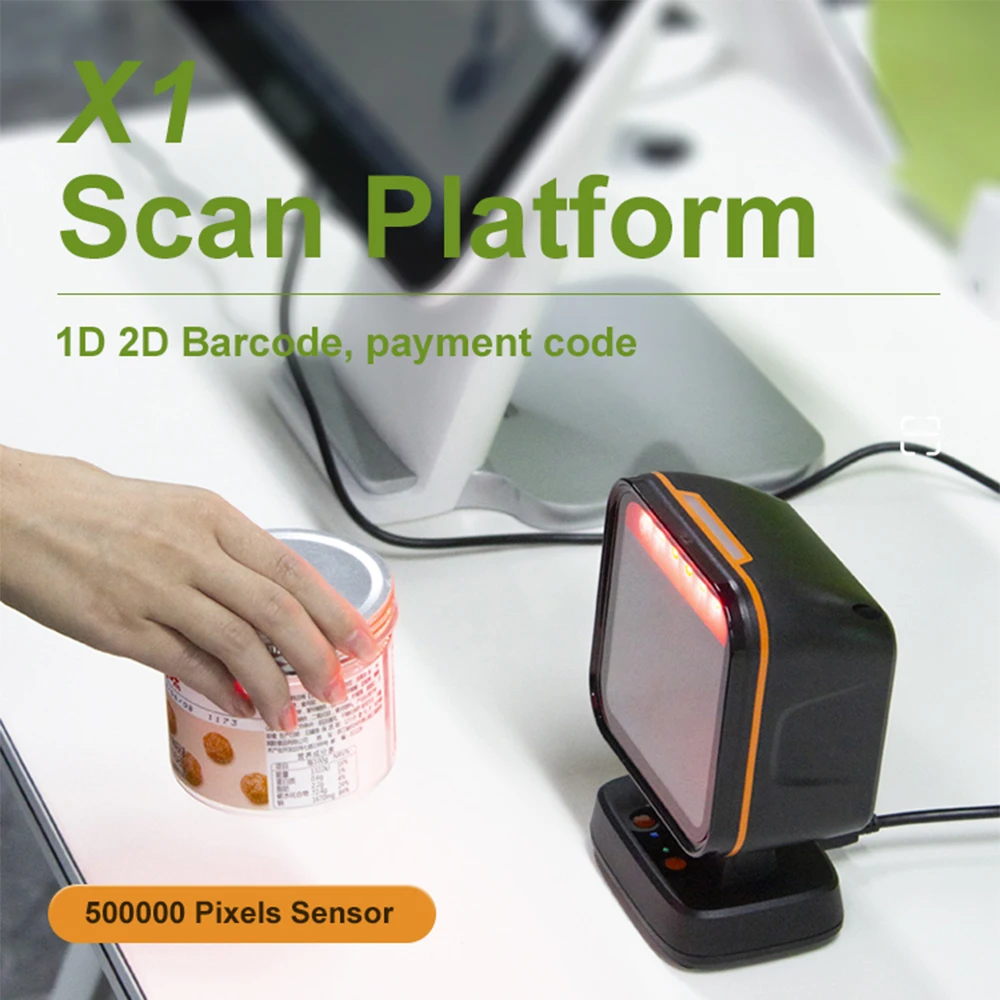

X1 high-speed 2D scanning platform


Starting from July 15, 2024, the X1-1000 will be upgraded to the X1-1100, with even more powerful performance. It can perfectly read small data matrices on cigarettes and is transmitted through oil film paper. Suitable for Russian cigarettes and small box cigarettes from various countries.


Description



Product features:

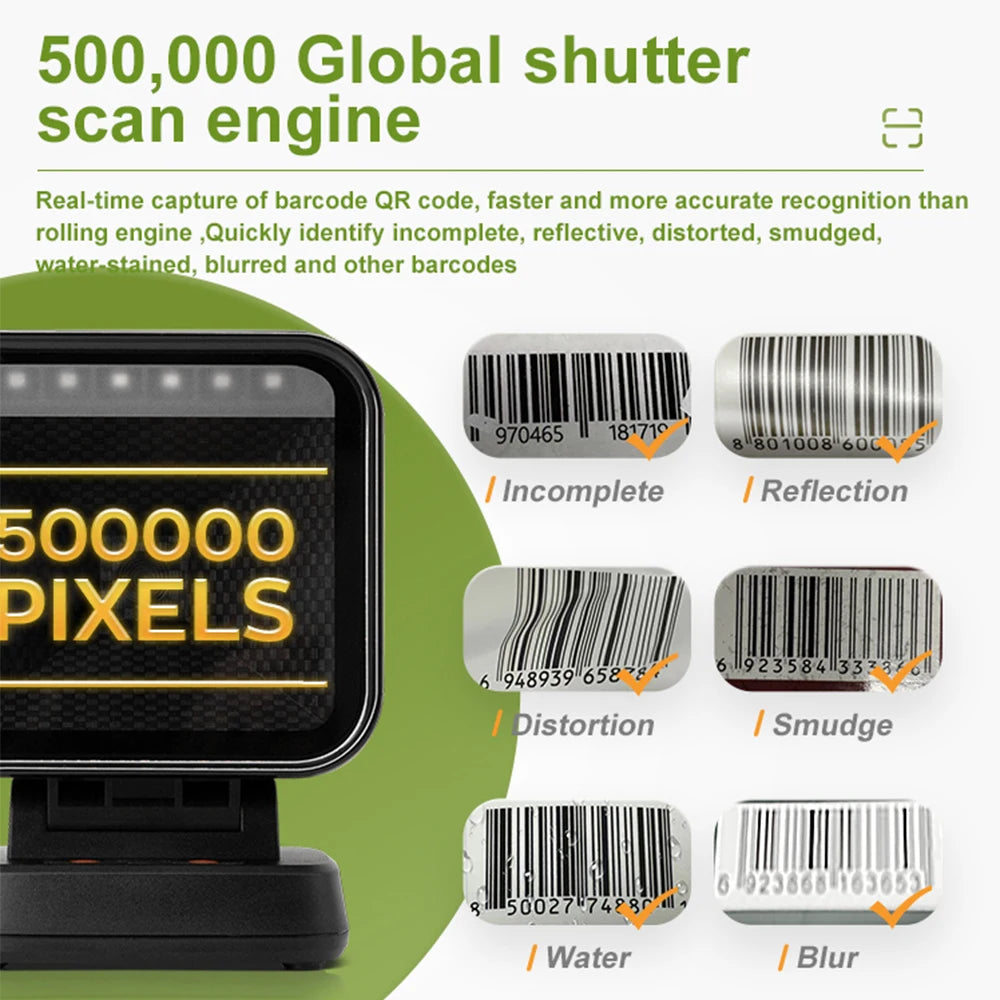

1. Equipped with a new 500,000 global exposure CMOS scanning engine

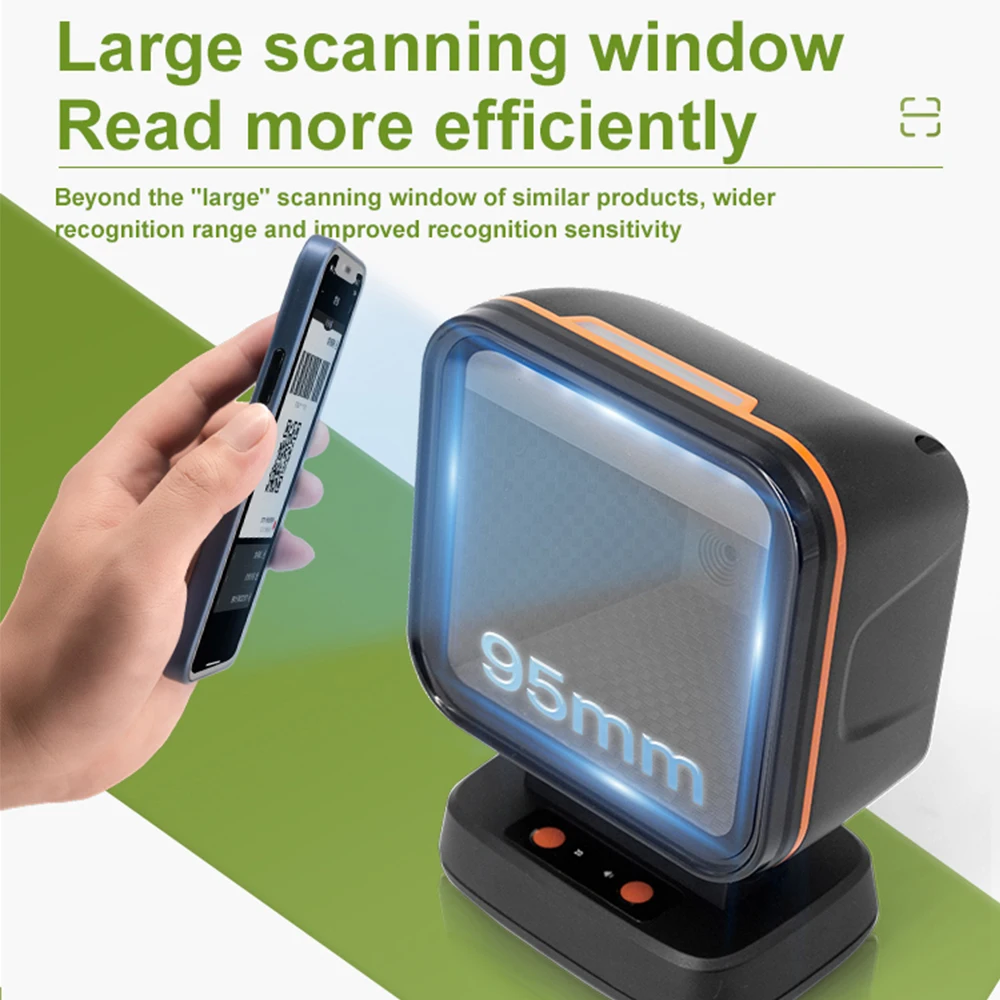

2. Larger scanning window, easier to read barcodes

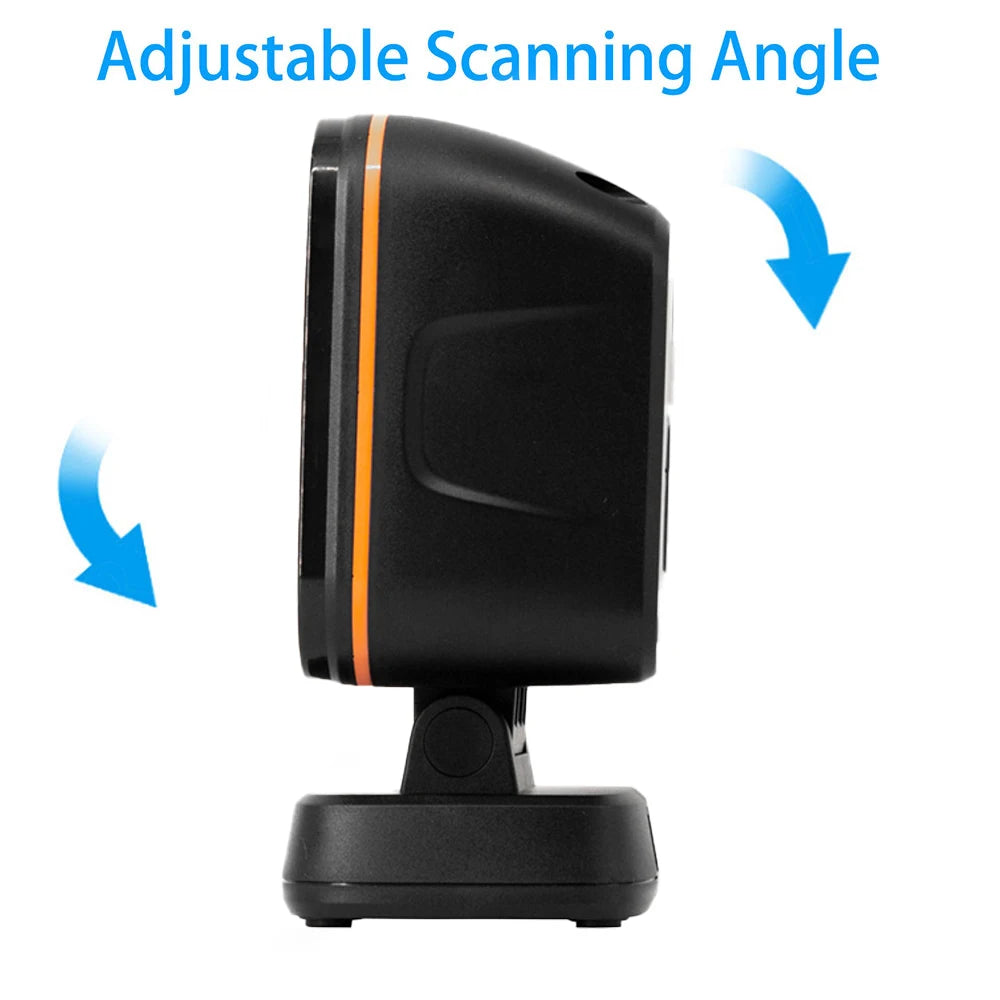

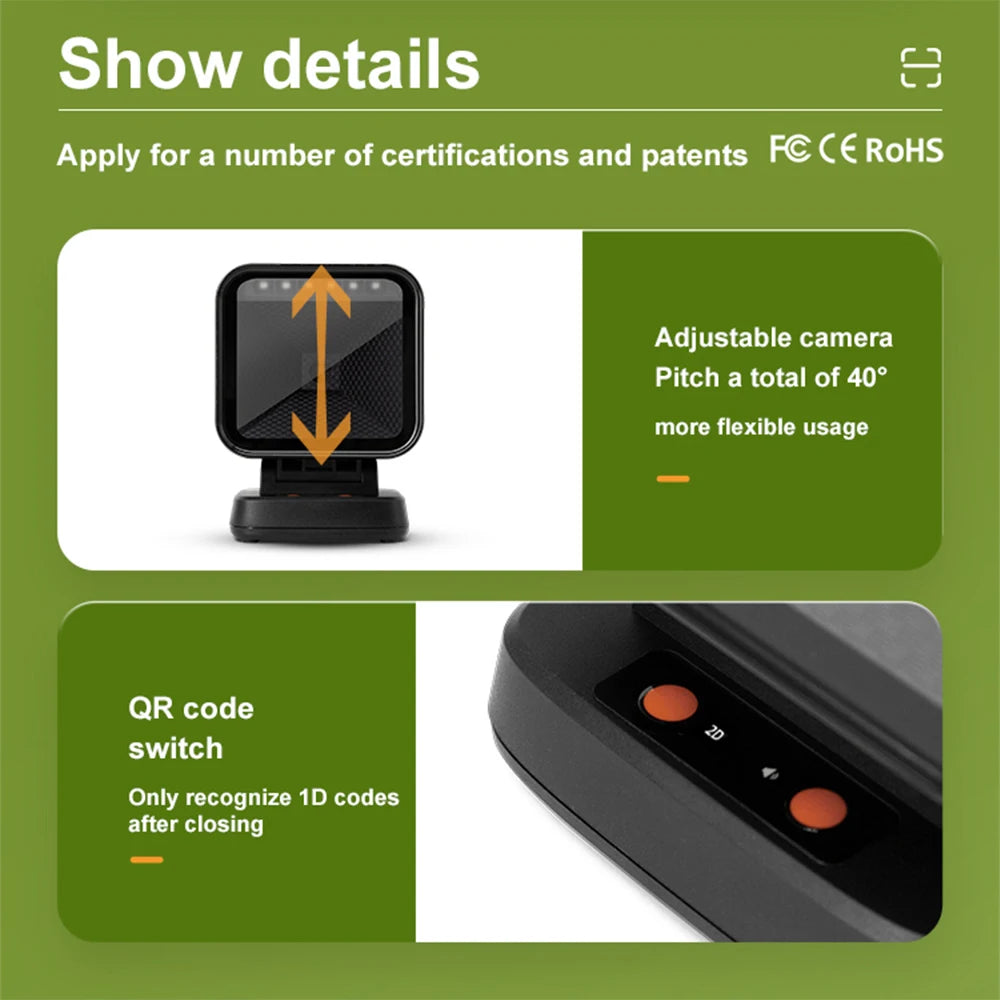

3. Adjustable angle, flexible and easy to use

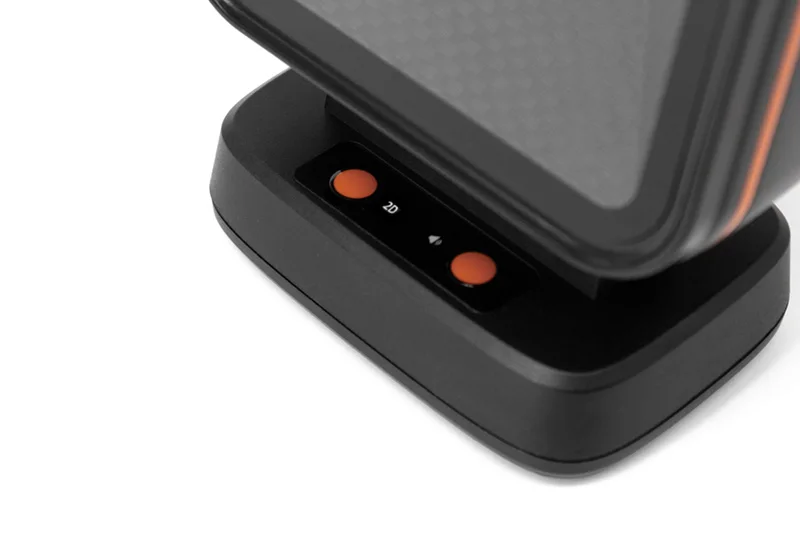

4. Common function buttons, easier to setup

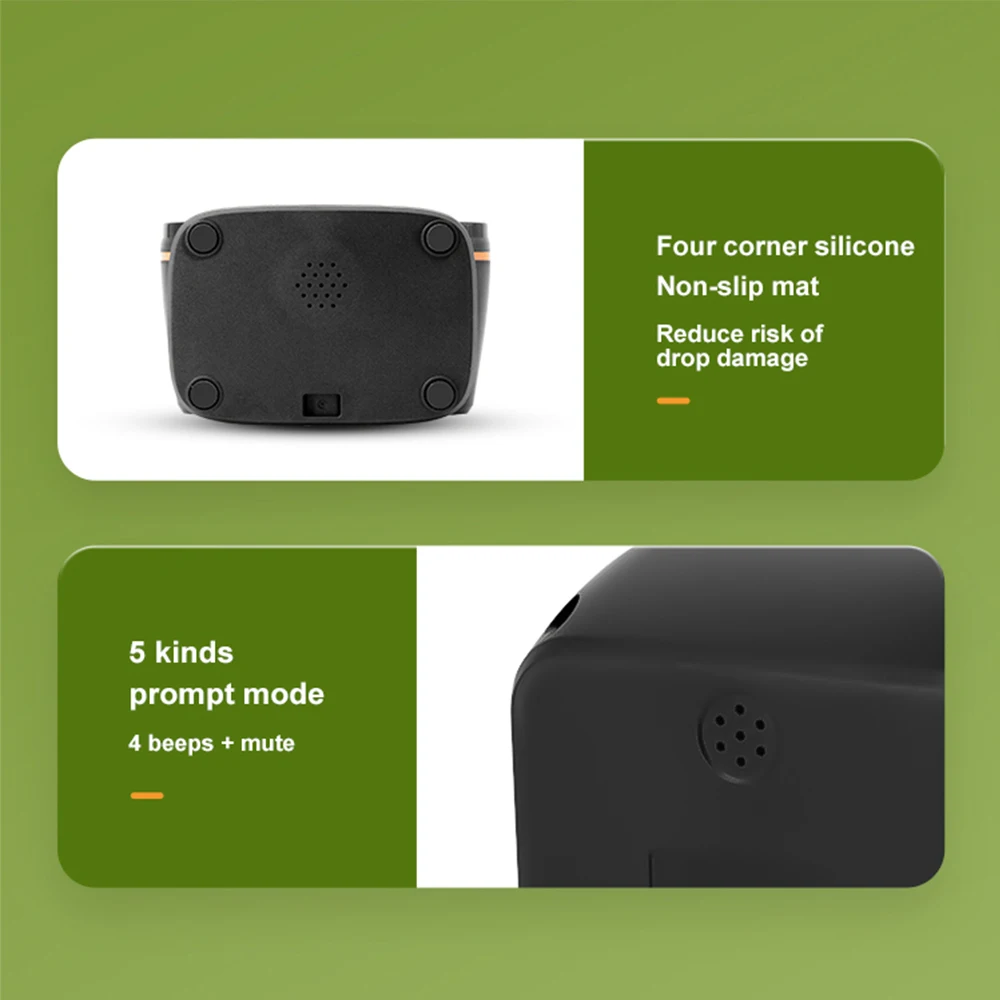

5. 5 different styles of prompt sound, soft and bright LED indicators

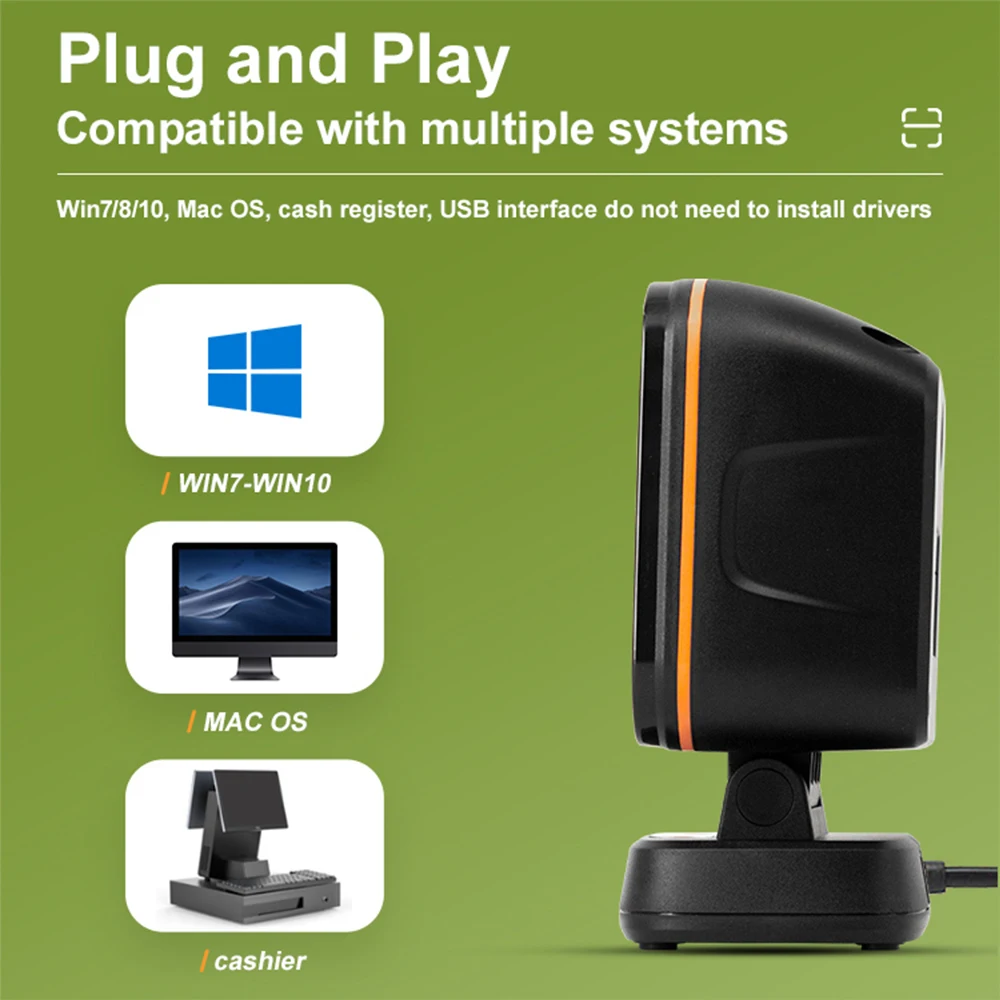

Multiple interfaces, strong compatibility, support a variety of systems and cash registers


Physical parameters:

Scan mode: Auto-sensing/continuous scanning

Communication interface: USB-HID keyboard, USB-COM virtual serial port, RS232 serial port

Interface type: USB TYPE-B

Prompt mode: Buzzers, LED lights

Set up way: Press the button to set, manually scan the setting code in turn

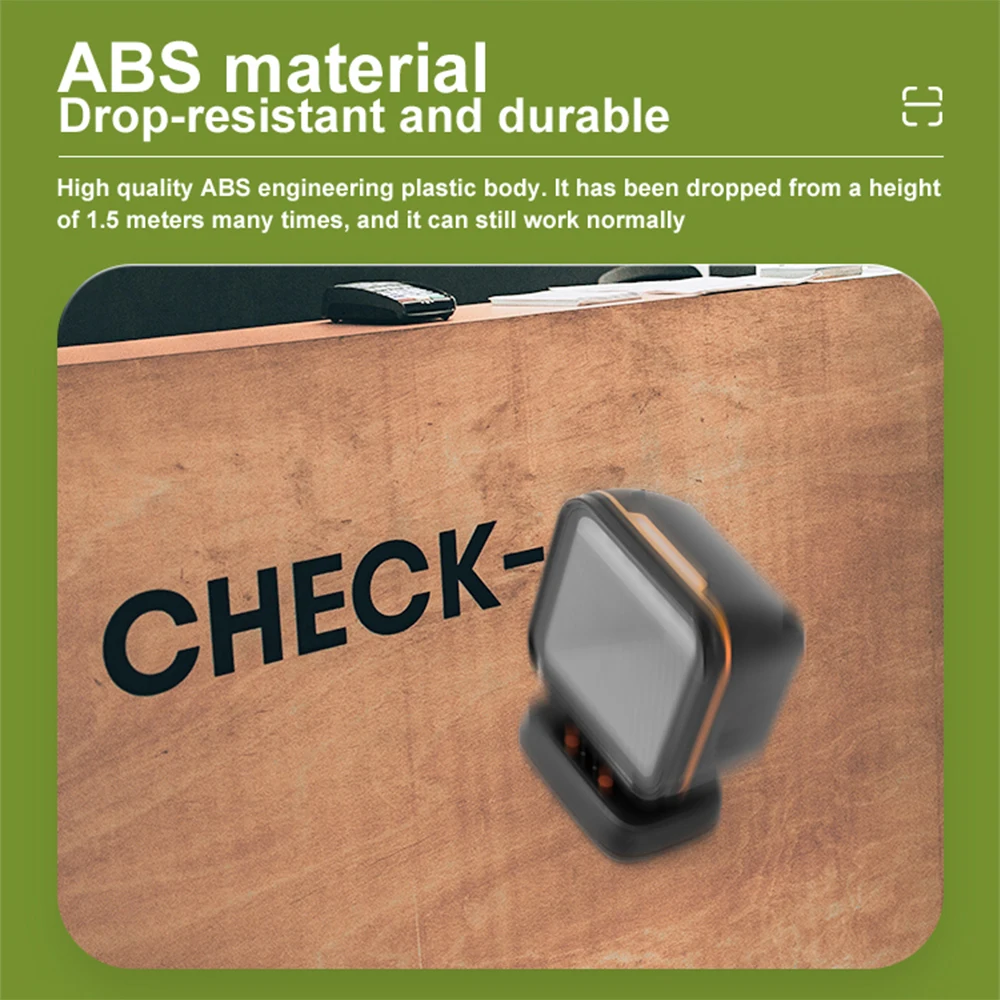

Shell material: ABS+PC

Cable standard: Straight line 1m

Exterior dimensions: 122mm×160mm×76mm

Weight: 312g (without cable)


Performance parameters:

Scan type: CMOS global exposure

Differentiation: 800*600

Light source: 617nm red LED

Scan angle: ± 60°, ±54°, 360° (left and right, front and back, rotation).

Scan rate: 20 cm/s

Field of view angle: 48° (H) x 30° (V)

Print contrast: Minimum 20%.

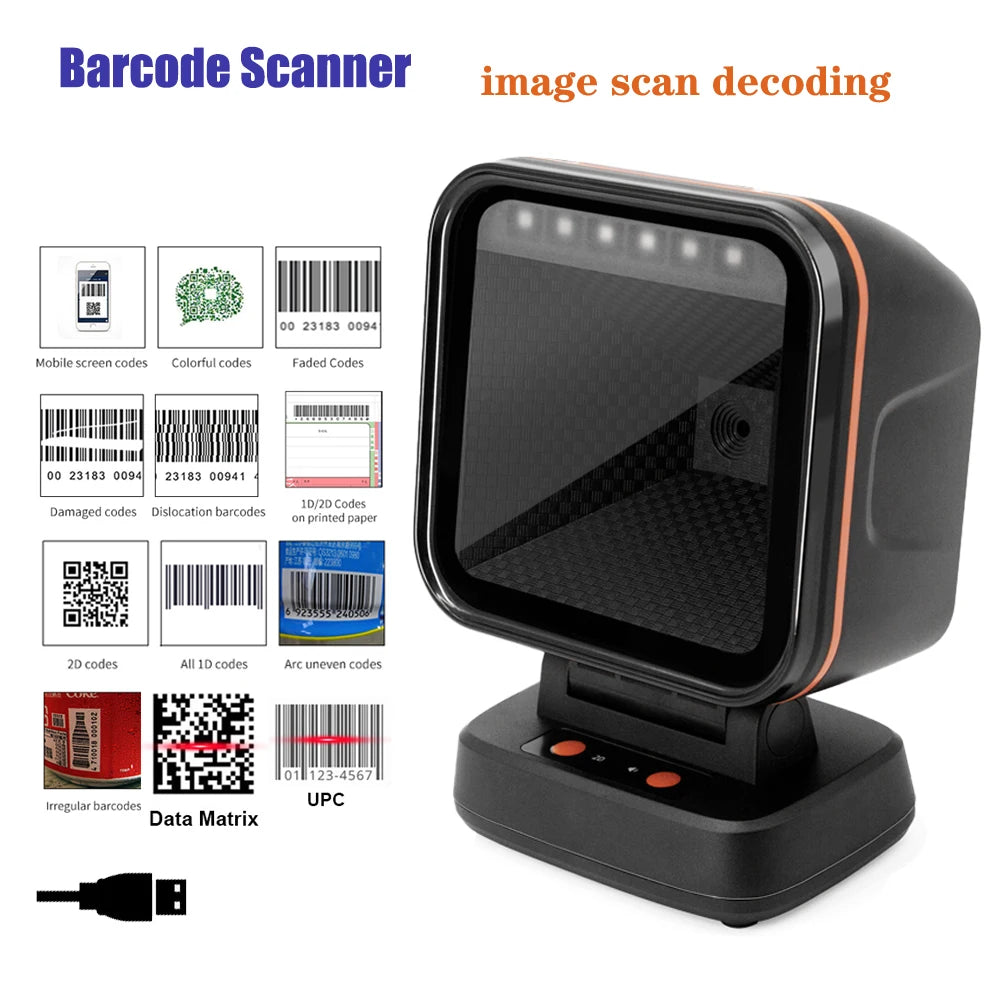

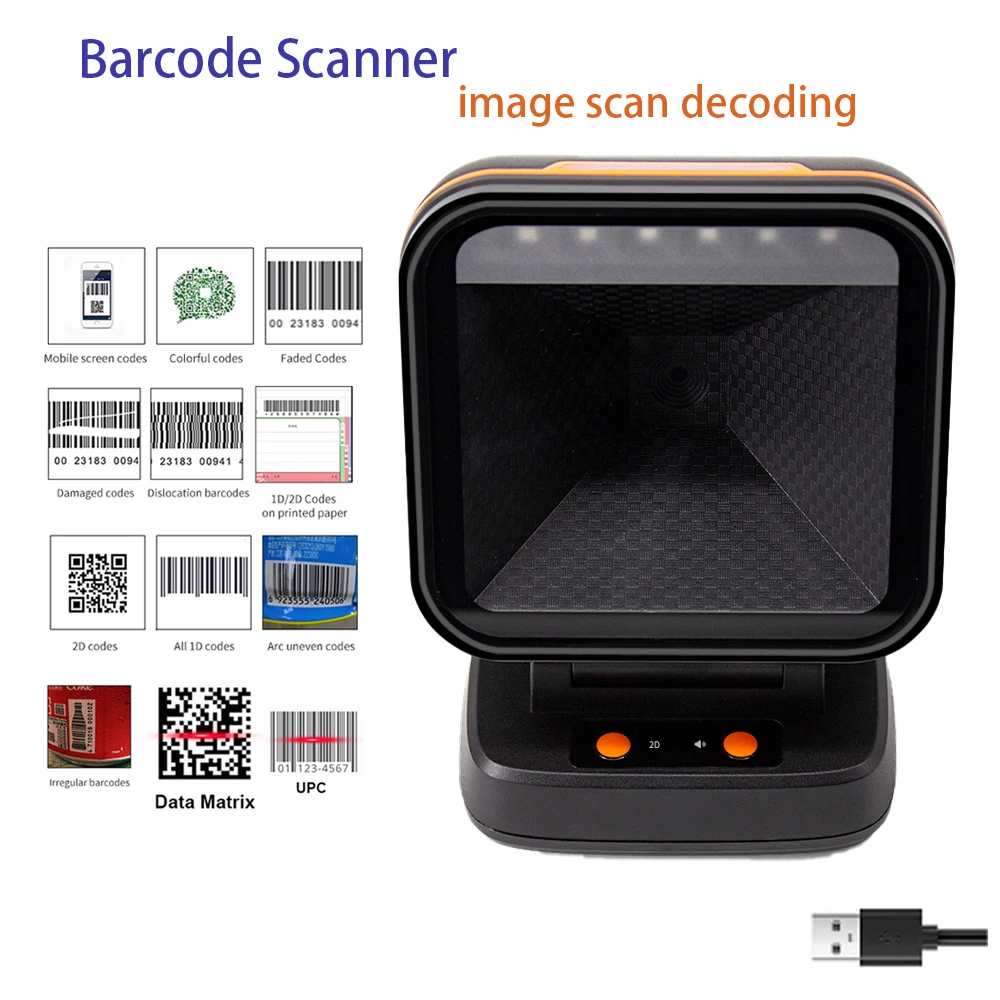

Decoding Types:

1D: EAN13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodeBar, MSI, RSS-14, RSS- Ltd, RSS- Exp, Standard 2 of 5, Plessey, ChinaPost 25, GS1 Composite

2D: QR Code, Data Matrix (DM), PDF417, Han Xin, Micro PDF417, Micro QRCode, MaxiCode, Aztec Code, Code16K, support mobile phone screen reading

Minimum resolution: 4 mil


Electrical parameters:

Input voltage: DC 5V±10%

Current: Working: 240 mAh; Standby: 190 mAh


Environment parameters:

Temperature: 0°C-50°C (working); -20°C~+70°C (storage).

Humidity: 5%-95% non-condensing
