SPECIFICATIONS

Brand Name: NONE

Choice: yes

High-concerned chemical: none

Model Number: 2D wired Barcode scanner

Origin: Mainland China

Product features:

1. High-speed decoding and responsiveness

2. Compact, lightweight, ergonomic and comfortable to handle.

3. Excellent durability: Dustproof and waterproof IP54 and can withstand drops to concrete at a height of 1.5 m

Parameters:

Scan mode:Key trigger/auto-sensing/continuous scanning

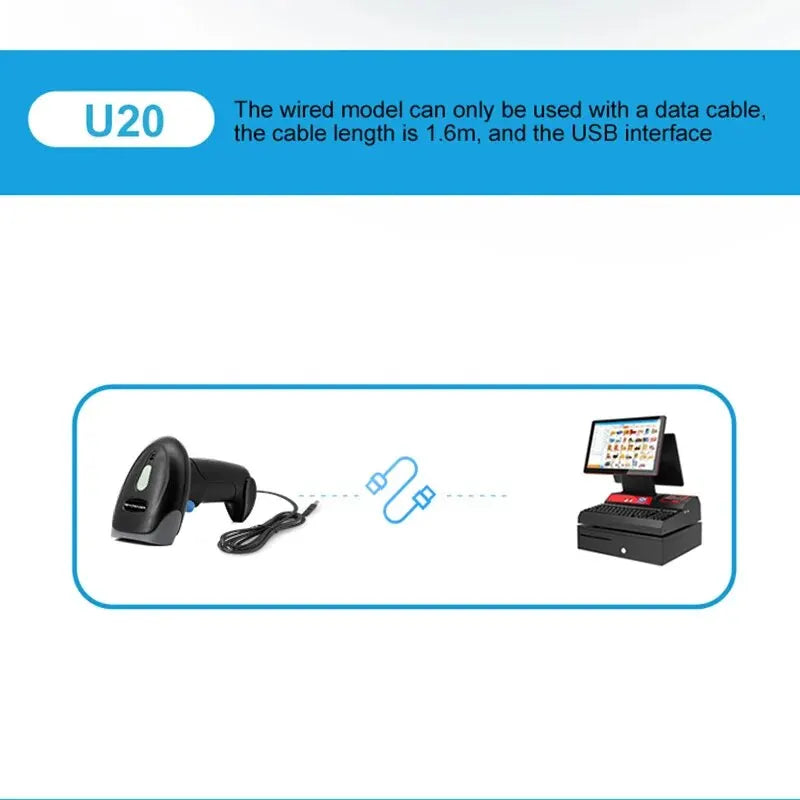

Interface type: USB

Prompt mode: Buzzer, LED light

How it is set up: Manually scan the setup codes one after the other

Housing material : ABS + PC

Cable standard: Straight line 1.6m

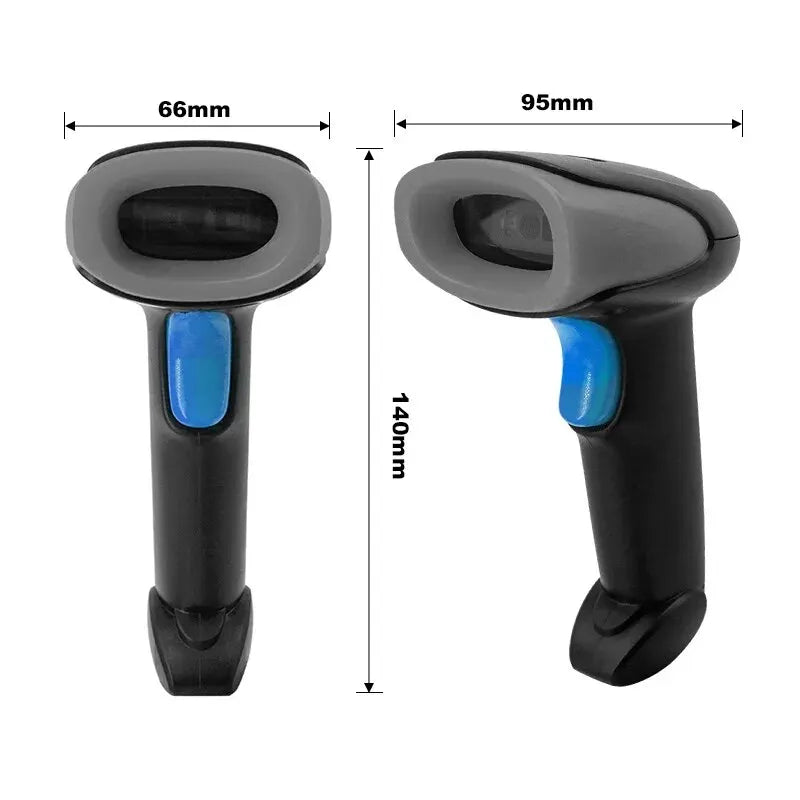

Exterior dimensions: 160mm×66mm×95mm(product); 195mm×105 mm×80mm(packaging)

Sensors: CMOS

Resolution: 640*480

Light source: White LED

Scan angle: ± 60°, ±60°, 360° (elevation, declination, rotation).

Scan rate: 120 fps

Field of view : 48° (H) x 30° (V)

Printing contrast: Minimum 15%.

Decoding kind:

1D: EAN13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodeBar, MSI, RSS-14, RSS- Ltd, RSS- Exp, Standard 2 of 5, Plessey, GS1 Composite

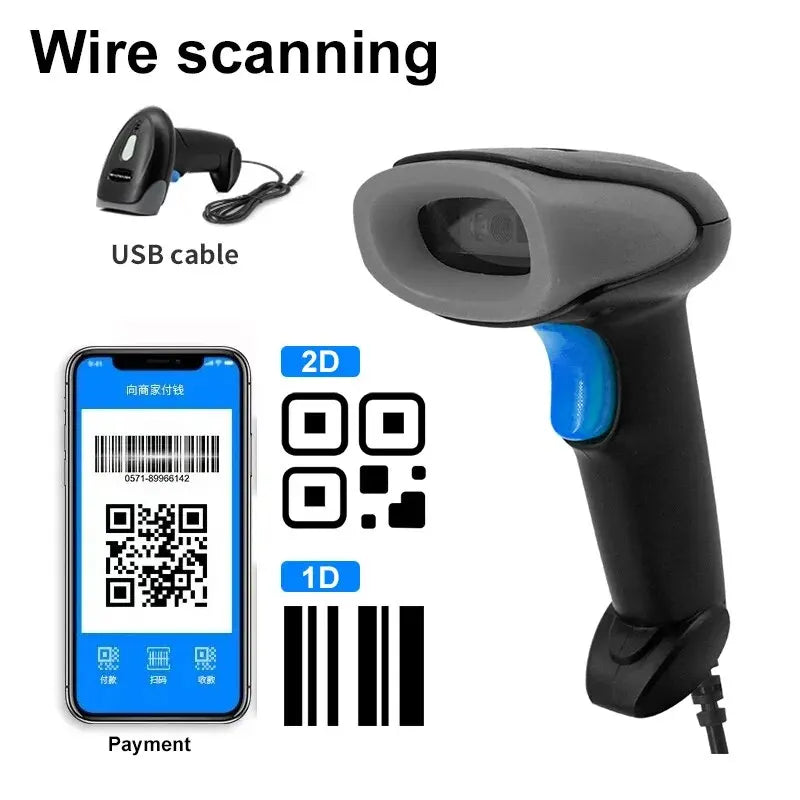

2D: QR Code, Data Matrix (DM), PDF417, MaxiCode, Aztec Code, support mobile screen reading

Minimum resolution: 1D code 3.5mil; QR code 10MIL

Depth of field QR (15mil) 30~210mm

QR payment code (mobile code) 80~550mm

Data Matrix (10mil) 30- 140mm

PDF 417 (6.7mil) 50- 120mm EAN-13 (13mil) 50~280mm

Code 39 (8mil) 30- 190mm

Code 128 (15mil) 80~320mm

Input voltage: DC5V ± 10%

Current: Working: 350 mAh; Standby: 130 mAh

Environment parameters: Temperature 0°C-50°C (working); -40°C~+60°C (storage).

Humidity: 5%-95% non-condensing

Ambient brightness: Max.5,000 Lux (fluorescence)

Seismic resistance: It can withstand a drop in the air of 1.5m

Note:

2D barcode scanner,it also compatible with scanning 1D codes.

• This part # has a 30 days limited exchange warranty for replacement only with the same part. The product may have other warranties like manufacturer, service, or 90 days extended warranty that you can confirm with our sales department.
• All hardware sold are bulk equipment with no drivers and cd included. If you need a driver or CD installation for a particular item please contact our sales department to confirm the availability.
• If original part is not available to order, we may offer you an alternative but  compatible part from a different manufacturer.
